XCEZ8V2 - Zener Diode

Download the XCEZ8V2 datasheet PDF. This datasheet also covers the XCEZ5V6 variant, as both devices belong to the same zener diode family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • (1) AEC-Q101 qualified (2) Small package (3) The typical voltage of VZ is accorded to E24 series. 3. Packaging and Internal Circuit XCEZ series 1: Cathode 2: Anode ESC 4. Absolute Maximum Ratings 1 (Note) (Unless otherwise specified, Ta = 25.
  • ) Characteristics Symbol Note Rating Unit Power dissipation PD (Note 1) 150 mW (Note 2) 300 Junction temperature Tj 150.
  • Storage temperature Tstg -55 to 150 Note: Using continuously under heavy loads (e. g. the.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XCEZ5V6-Toshiba.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Toshiba

Part Number Description
XCEZ10V Zener Diode
XCEZ11V Zener Diode
XCEZ12V Zener Diode
XCEZ13V Zener Diode
XCEZ15V Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

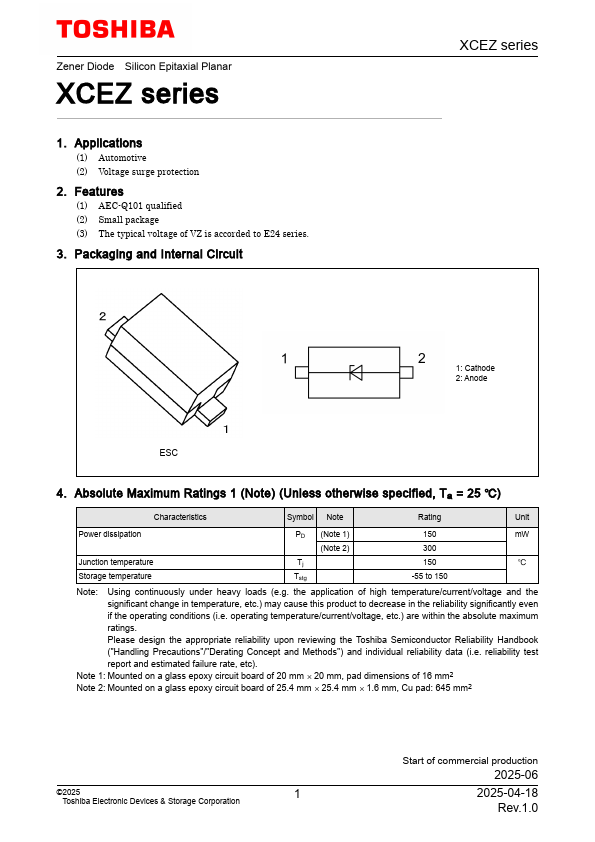

Zener Diode Silicon Epitaxial Planar XCEZ series 1. Applications (1) Automotive (2) Voltage surge protection 2. Features (1) AEC-Q101 qualified (2) Small package (3) The typical voltage of VZ is accorded to E24 series. 3. Packaging and Internal Circuit XCEZ series 1: Cathode 2: Anode ESC 4. Absolute Maximum Ratings 1 (Note) (Unless otherwise specified, Ta = 25 �) Characteristics Symbol Note Rating Unit Power dissipation PD (Note 1) 150 mW (Note 2) 300 Junction temperature Tj 150 � Storage temperature Tstg -55 to 150 Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e.
