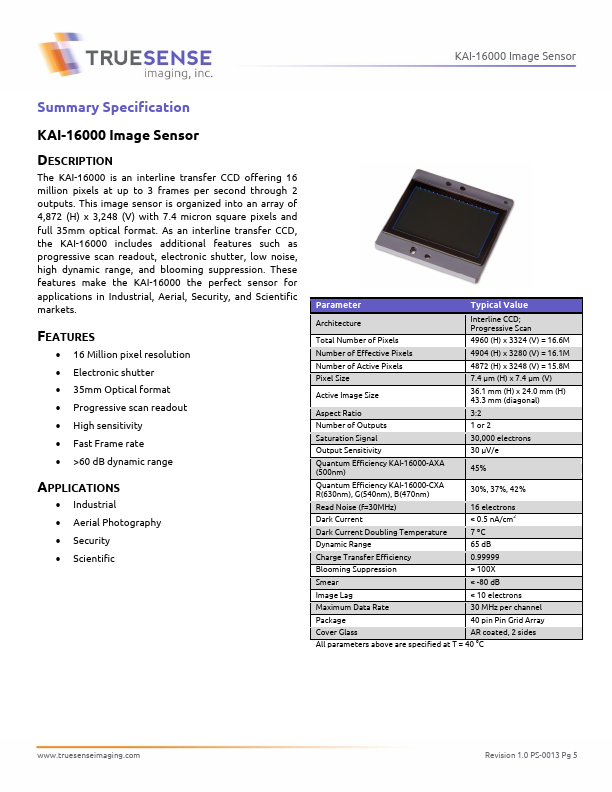

KAI-16000 Image Sensor Summary Specification KAI-16000 Image Sensor DESCRIPTION The KAI-16000 is an interline transfer CCD offering 16 million pixels at up to 3 frames per second through 2 outputs. This image sensor is organized into an array of 4,872 (H) x 3,248 (V) with 7.4 micron square pixels and full 35mm optical format. As an interline transfer CCD, the KAI-16000 includes additional Features such as progressive scan readout, electronic shutter, low noise, high dynamic range, and blooming suppression. These Features make the KAI-16000 the perfect sensor for applications in Industrial, Aerial, Security, and Scientific markets. Features - 16 Million pixel resolution - Electronic shutter - 35mm Optical format - Progressive scan readout - High sensitivity - Fast Frame rate - >60 d B dynamic range APPLICATIONS - Industrial - Aerial Photography - Security - Scientific Parameter Typical Value Architecture Interline CCD; Progressive Scan Total Number of Pixels 4960 (H) x 3324 (V) = 16.6M Number of Effective Pixels 4904 (H) x 3280 (V) = 16.1M Number of Active Pixels 4872 (H) x 3248 (V) = 15.8M Pixel Size 7.4 μm (H) x 7.4 μm...
