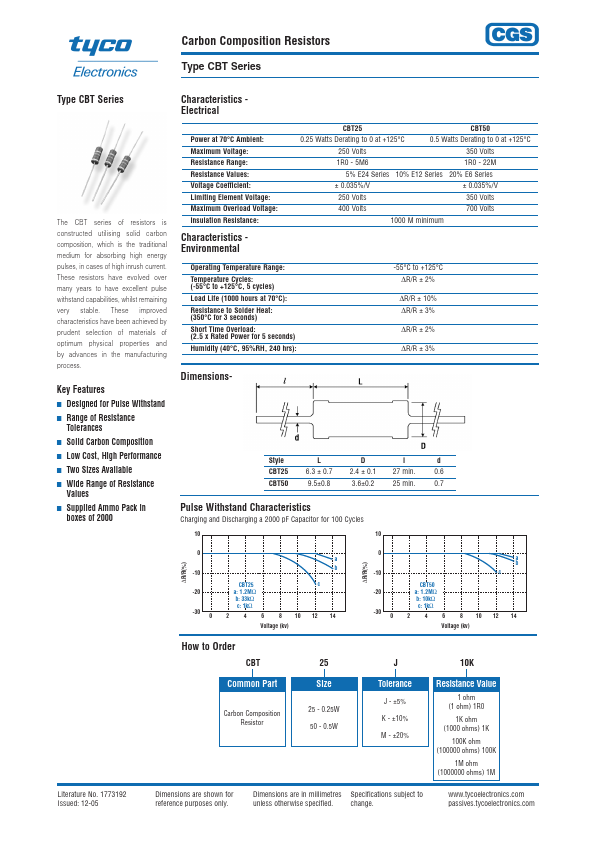

CBT25
Features
I Designed for Pulse Withstand I Range of Resistance
Tolerances I Solid Carbon position I Low Cost, High Performance I Two Sizes Available I Wide Range of Resistance
Values I Supplied Ammo Pack in boxes of 2000
Characteristics Electrical
Power at 70°C Ambient: Maximum Voltage: Resistance Range: Resistance Values: Voltage Coefficient: Limiting Element Voltage: Maximum Overload Voltage: Insulation Resistance:
Characteristics Environmental
CBT50
0.25 Watts Derating to 0 at +125°C
0.5 Watts Derating to 0 at +125°C
250 Volts
350 Volts
1R0
- 5M6
1R0
- 22M
5% E24 Series 10% E12 Series 20% E6 Series
± 0.035%/V
± 0.035%/V
250 Volts
350 Volts
400 Volts
700 Volts
1000 M minimum
Operating Temperature Range:
Temperature Cycles: (-55°C to +125°C, 5 cycles)
Load Life (1000 hours at 70°C):
Resistance to Solder Heat: (350°C for 3 seconds)
Short Time Overload: (2.5 x Rated Power for 5 seconds)
Humidity (40°C, 95%RH, 240 hrs):
-55°C to +125°C ∆R/R ± 2%
∆R/R ± 10% ∆R/R...
