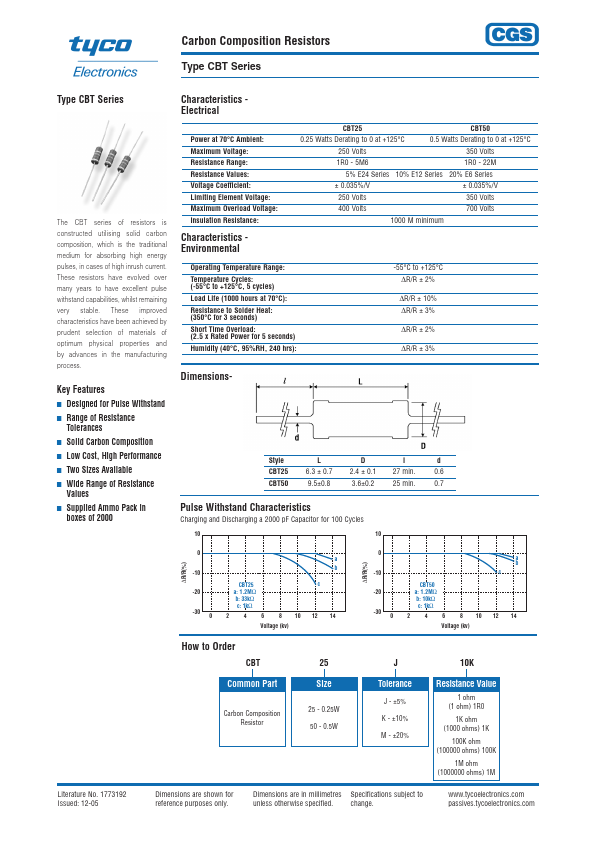

CBT50 Overview
Carbon position Resistors Type CBT Series Type CBT Series The CBT series of resistors is constructed utilising solid carbon position, which is the traditional medium for absorbing high energy pulses, in cases of high inrush current. These resistors have evolved over many years to have excellent pulse withstand capabilities, whilst remaining very stable. These improved characteristics have been achieved by prudent...
CBT50 Key Features
- 55°C to +125°C ∆R/R ± 2%
- 0.25W 50
- ±10% M
