AO4803A
AO4803A is -30V Dual P-Channel MOSFET manufactured by UMW.

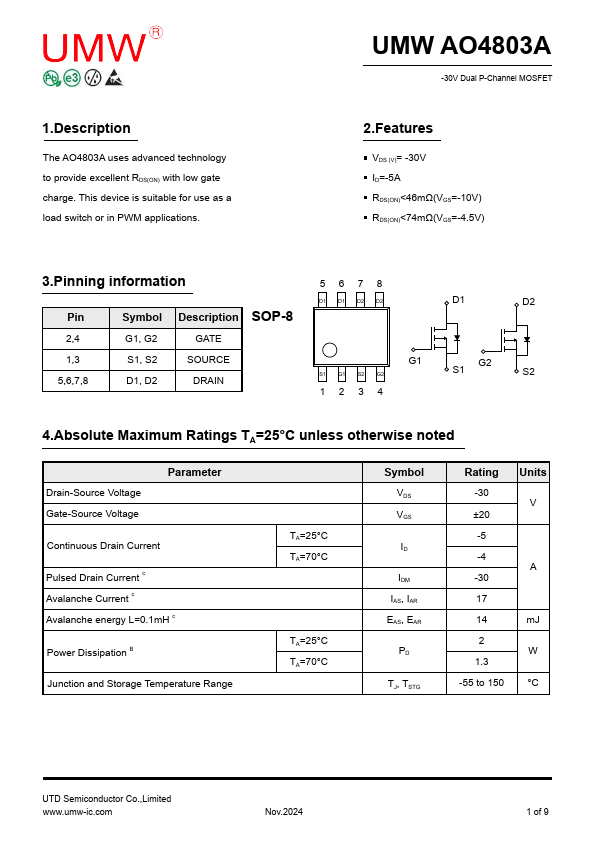

Description
The AO4803A uses advanced technology to provide excellent RDS(ON) with low gate charge. This device is suitable for use as a load switch or in PWM applications.
UMW AO4803A
-30V Dual P-Channel MOSFET
2.Features
VDS (V)= -30V ID=-5A RDS(ON)<46mΩ(VGS=-10V) RDS(ON)<74mΩ(VGS=-4.5V)
3.Pinning information
Pin
Symbol Description
SOP-8
D1 D1 D2 D2
D1
D2
2,4
G1, G2
GATE
1,3 5,6,7,8
S1, S2 D1, D2
SOURCE DRAIN
G1
G2
S1 G1 S2 G2
S1
S2
4.Absolute Maximum Ratings TA=25°C unless otherwise noted
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current c Avalanche Current c Avalanche energy L=0.1m H c
Power Dissipation B
Junction and Storage Temperature Range
TA=25°C TA=70°C
TA=25°C TA=70°C
Symbol VDS VGS
IDM IAS, IAR EAS, EAR

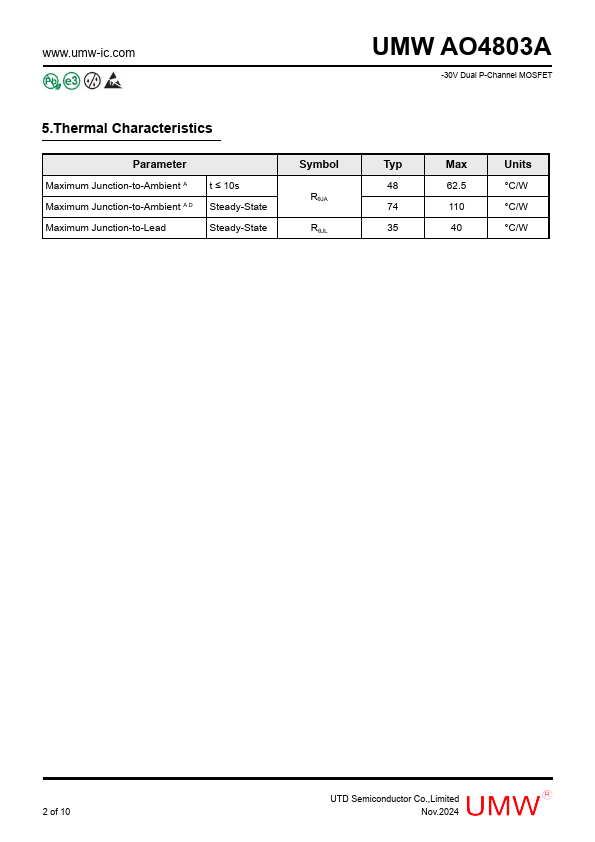

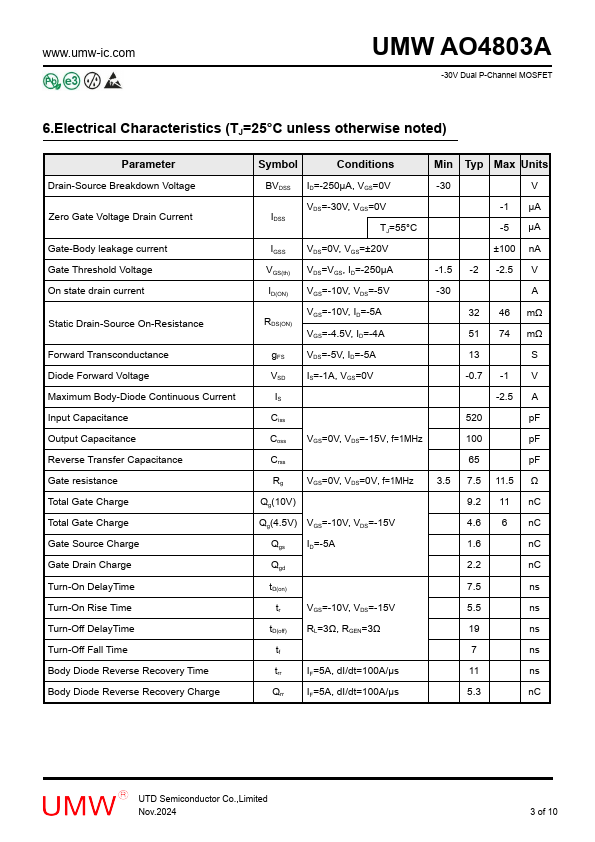

TJ,...
