FEATURES
ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge 2.Pinning information UMW GSOTxx-E3-08 Single-Line ESD Protection Single-line ESD protection device 3 1 2 SOT-23 3.1Absolute MAXIMUM RATINGS
GSOT03 Parameter Peak pulse current Peak pulse power ESD immunity Junction Temperature Storage temperature Symbol Pin 3 to 1 acc. IEC 61000-4-5, tp=8/20μs; single shot Pin 3 to 1 acc. IEC 61000-4-5, tp=8/20μs; single shot Contact discharge acc. IEC 61000-4-2; 10 pulses Air discharge acc. IEC 61000-4-2; 10 pulses Junction temperature Symbol IPPM PPP VESD TJ TSTG Value Units 30 A 369 W ±30 kV ±30 kV -40 to 125 °C -55 to 150 °C UTD Semiconductor Co.,Limited Feb.2025 1 of 14 UMW GSOTxx-E3-08 Single-Line ESD Protection 3.2Absolute MAXIMUM RATINGS

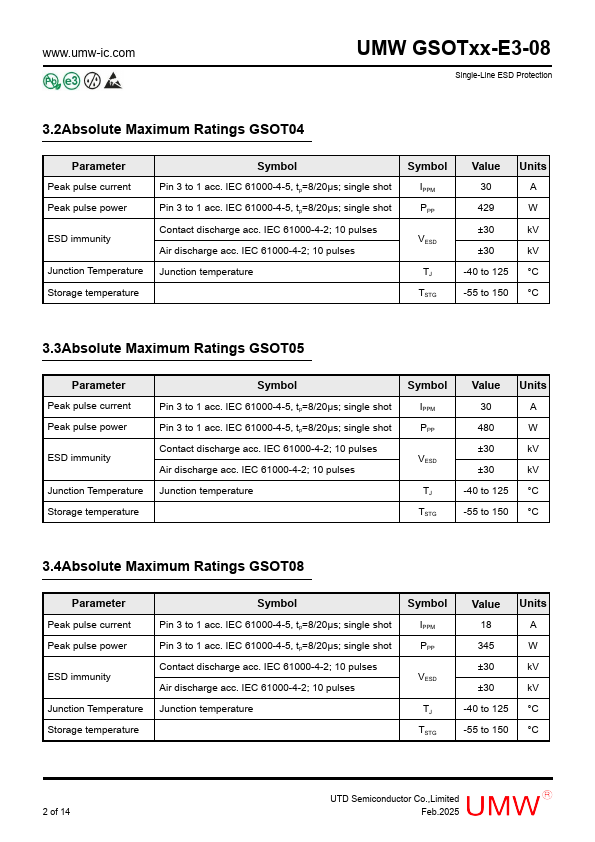

GSOT04 Parameter Peak pulse current Peak pulse power ESD immunity Junction Temperature Storage temperature Symbol Pin 3 to 1 acc. IEC 61000-4-5, tp=8/20μs; single shot Pin 3 to 1 acc. IEC 61000-4-5, tp=8/20μs; single shot Contact discharge acc.
