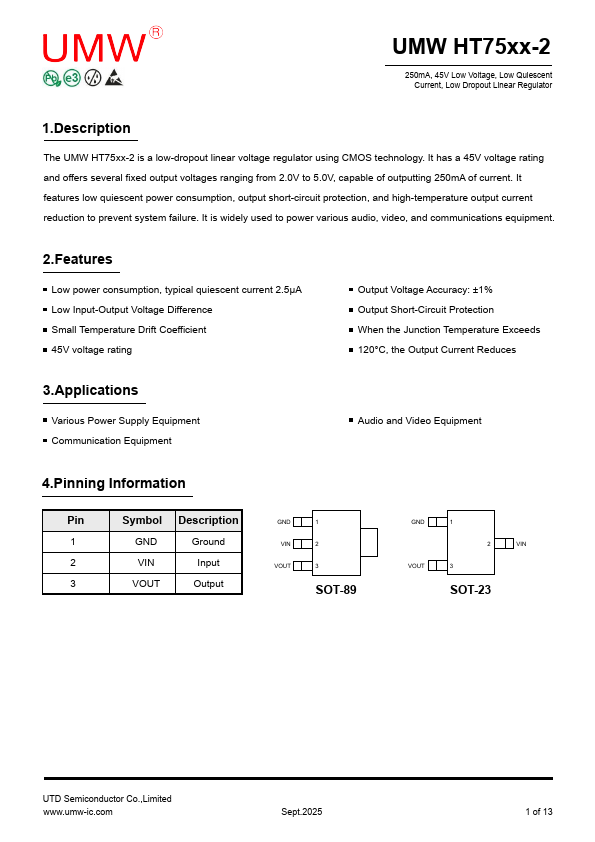

DESCRIPTION
The UMW It is widely used to power various audio, video, and communications equipment. 2.FEATURES
Low power consumption, typical quiescent current 2.5μA Low Input-Output Voltage Difference Small Temperature Drift Coefficient 45V voltage rating 3.APPLICATIONS
Various Power Supply Equipment Communication Equipment Output Voltage Accuracy: ±1% Output Short-Circuit Protection When the Junction Temperature Exceeds 120°C, the Output Current Reduces Audio and Video Equipment 4.Pinning Information Pin Symbol DESCRIPTION

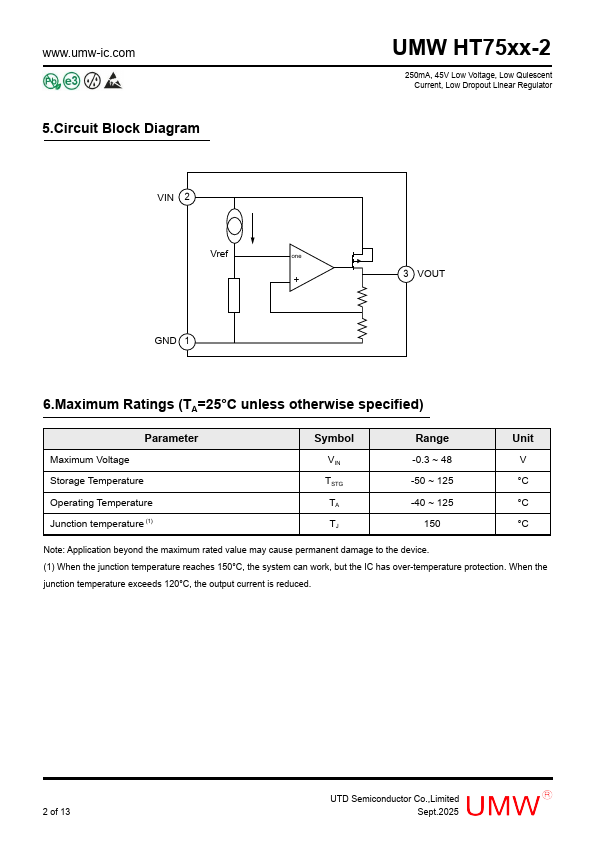

1 GND Ground 2 VIN Input 3 VOUT Output GND VIN VOUT 1 2 3 SOT-89 GND 1 2 VIN VOUT 3 SOT-23 UTD Semiconductor Co.,Limited Sept.2025 1 of 13 5.Circuit Block Diagram UMW HT75xx-2 250mA, 45V Low Voltage, Low Quiescent Current, Low Dropout Linear Regulator VIN 2 Vref one + 3 VOUT GND 1 6.MAXIMUM RATINGS
(TA=25°C unless otherwise specified) Parameter Maximum Voltage Storage Temperature Operating Temperature Junction temperature (1) Symbol VIN TSTG TA TJ Range -0.3 ~ 48 -5...
