HT7544 Description

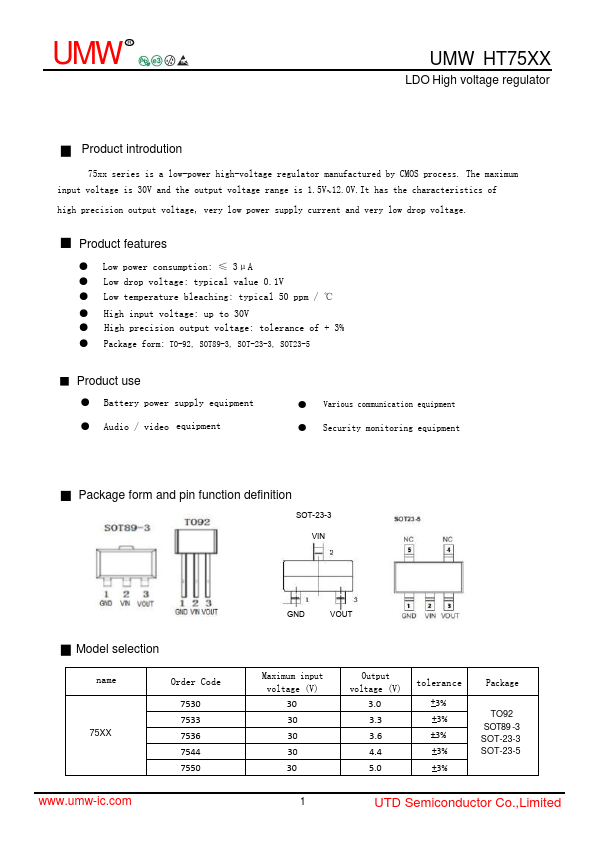

UMW R UMW HT75XX LDO High voltage regulator Product introdution 75xx series is a low-power high-voltage regulator manufactured by CMOS process. The maximum input voltage is 30V and the output voltage range is 1.5V~12.0V.It has the characteristics of high precision output voltage, very low power supply current and very low drop voltage.
HT7544 Key Features
- Low power consumption: ≤ 3μA
- Low drop voltage: typical value 0.1V
- Low temperature bleaching: typical 50 ppm / ℃
- High input voltage: up to 30V
- High precision output voltage: tolerance of + 3%
- Package form: TO-92, SOT89-3, SOT-23-3, SOT23-5
- Product use
- Battery power supply equipment
- Audio / video equipment
- Various munication equipment
