UMW HT7550
LDO High voltage regulator
| Part No. | HT7550 |
|---|---|
| Datasheet | HT7550 Download |
| Manufacturer | UMW |
| Description | LDO High voltage regulator |
| Buy | Stock & Price |

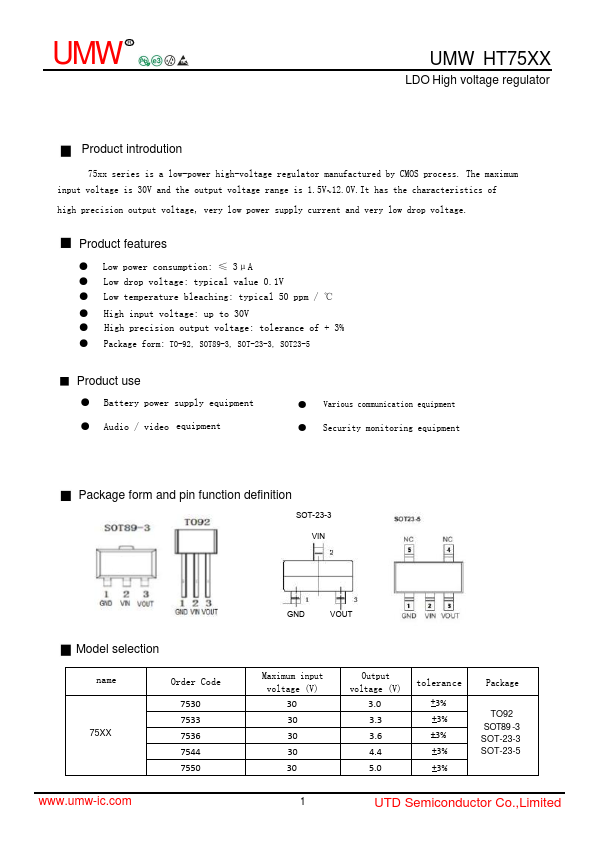

UMW R UMW HT75XX LDO High voltage regulator Product introdution 75xx series is a low-power high-voltage regulator manufactured by CMOS process. The maximum input voltage is 30V and the output voltage range is 1.5V~12.0V.It has the characteristics of high precision output voltage, very low power supply current and very low drop voltage. Product features
● Low power consumption: ≤ 3μA
● Low drop voltage: typical value 0.1V
● Low temperature bleaching: typical 50 ppm / ℃
● High input voltage: up to 30V
● High precision output voltage: tolerance of + 3%
● Package form: TO-92, SOT89-3, SOT-23-3, SOT23-5
● Product use
● Battery power supply equipment
● Audio / video equipment
● Various communication equipment
● Security monitoring equipment Package form and pin function definition SOT-23-3 VIN Model selection name 75XX Order Code 7530 7533 7536 7544 7550 GND VOUT Maximum input voltage (V) 30 30 30 30 30 Output voltage (V) 3.0 3.3 3.6 4.4 5.0 toleran ce +3% +3% +3% +3% +3% Package TO92 SOT89...
