SM05

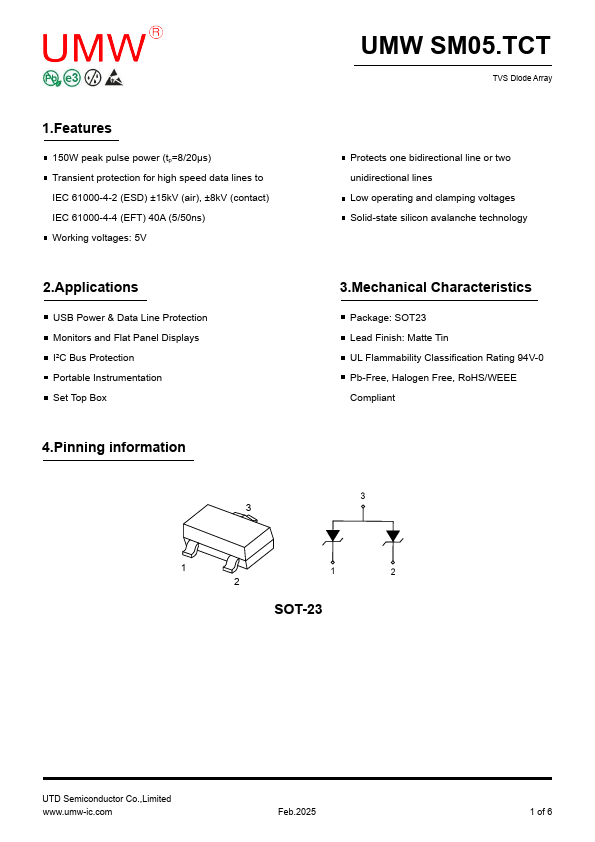

Features
150W peak pulse power (tp=8/20μs) Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±15k V (air), ±8k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Working voltages: 5V
2.Applications
USB Power & Data Line Protection Monitors and Flat Panel Displays I²C Bus Protection Portable Instrumentation Set Top Box
4.Pinning information
UMW SM05.TCT
TVS Diode Array
Protects one bidirectional line or two unidirectional lines Low operating and clamping voltages Solid-state silicon avalanche technology
3.Mechanical Characteristics
Package: SOT23 Lead Finish: Matte Tin UL Flammability Classification Rating 94V-0 Pb-Free, Halogen Free, Ro HS/WEEE pliant
1 2
SOT-23
UTD Semiconductor Co.,Limited .umw-ic.
Feb.2025
1 of 6
.umw-ic.
UMW SM05.TCT
TVS Diode Array

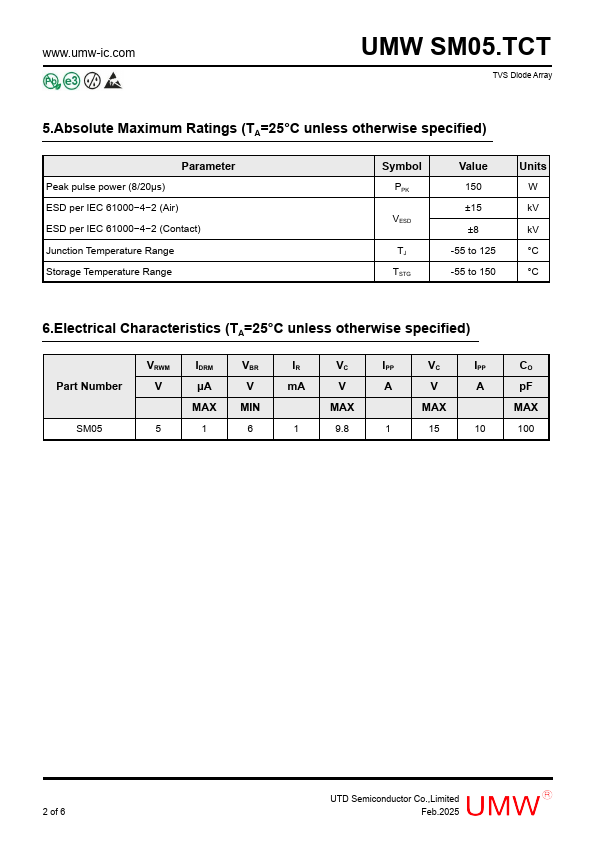

5.Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter Peak pulse power (8/20µs) ESD per IEC 61000- 4- 2 (Air) ESD per IEC 61000- 4- 2 (Contact) Junction Temperature Range Storage...
