RTM7916-51 Datasheet | UNISOC

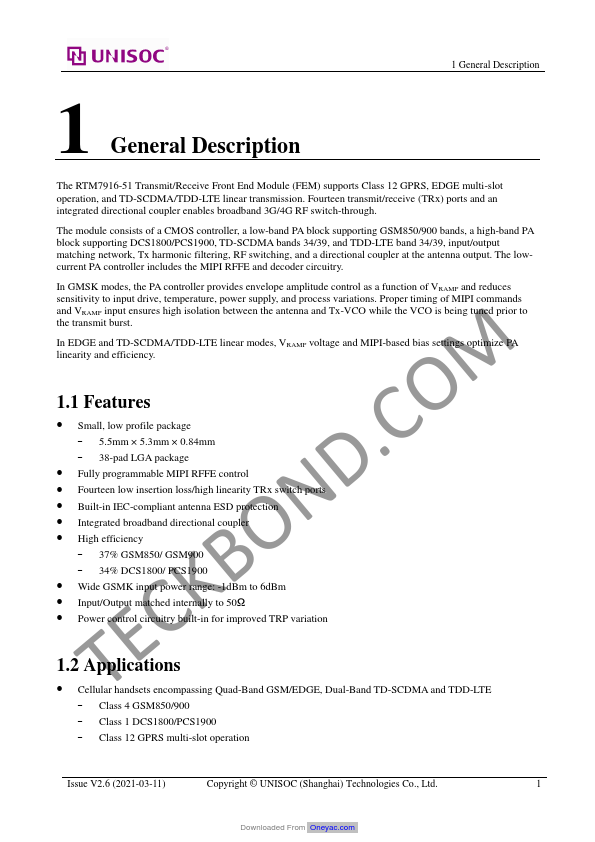

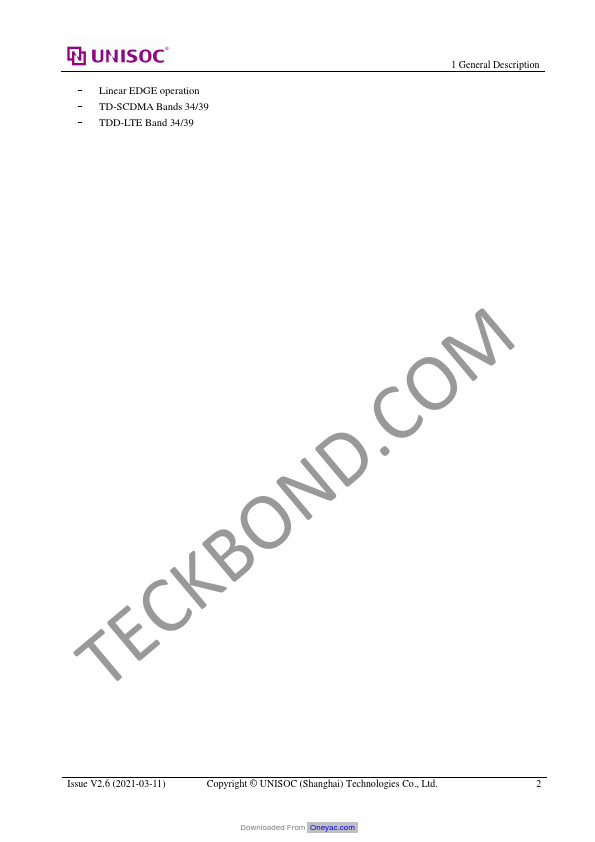

Description 1 General Description The RTM7916-51 Transmit/Receive Front End Module (FEM) supports Class 12 GPRS, EDGE multi-slot operation, and TD-SCDMA/TDD-LTE linear transmission. Fourteen transmit/receive (TRx) ports and an integrated directional coupler enables broadband 3G/4G RF switch-through. The module consists of a CMOS controller, a low-band PA block supporting GSM850/900 bands, a high-band PA block supporting DCS1800/PCS1900, TD-SCDMA bands 34/39, and TDD-LTE band 34/39, input/output matching network, Tx harmonic filtering, RF switching, and a directional coupler at the antenna output. The lowcurrent PA controller includes the MIPI RFFE and decoder circuitry. In GMSK modes, the PA controller provides envelope amplitude control as a function of VRAMP and reduces sensitivity to input drive, temperature, power supply, and process variations. Proper timing of MIPI mands and VRAMP input ensures high isolation between the antenna and Tx-VCO while the VCO is being tuned prior to the transmit burst. In EDGE and TD-SCDMA/TDD-LTE linear modes, VRAMP voltage and MIPI-based bias settings optimize PA linearity and efficiency. M 1.1 Features - Small, low profile package - 5.5mm ×5.3mm ×0.84mm .C - 38-pad LGA package - Fully programmable MIPI RFFE control - Fourteen low insertion loss/high linearity TRx switch ports - Built-in IEC-pliant antenna ESD protection - Integrated broadband directional coupler - High efficiency - 37% GSM850/ GSM900 - 34% DCS1800/ PCS1900 B - Wide GSMK input power range: -1d Bm to 6d Bm - Input/Output matched internally to 50Ω - Power control circuitry built-in for improved TRP variation EC 1.2 Applications T- Cellular handsets enpassing Quad-Band GSM/EDGE, Dual-Band TD-SCDMA and TDD-LTE - Class 4 GSM850/900 - Class 1 DCS1800/PCS1900 - Class 12 GPRS multi-slot operation Issue V2.6 (2021-03-11) Copyright © UNISOC (Shanghai) Technologies Co., Ltd. Downloaded From Oneyac. - Linear EDGE operation - TD-SCDMA Bands 34/39 - TDD-LTE Band...
