RTM7916-61 Description

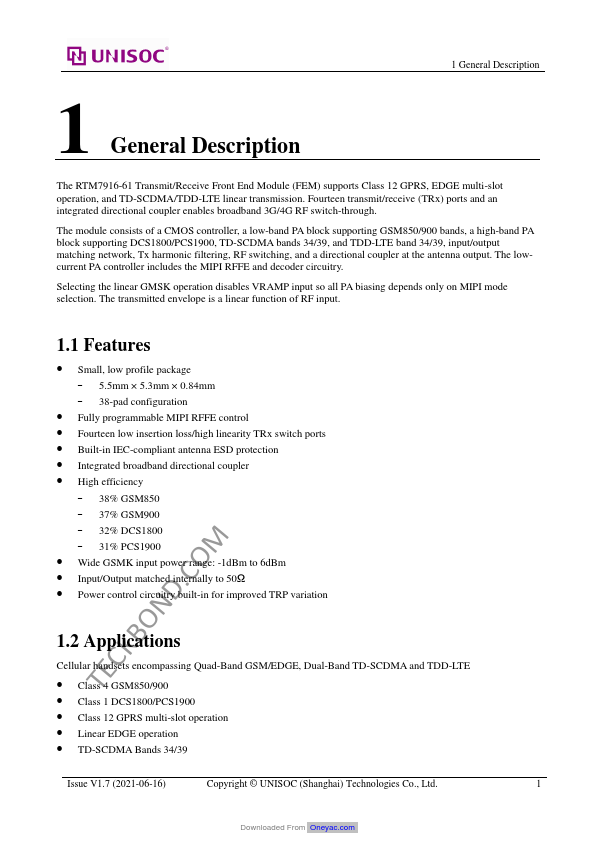

1 General Description The RTM7916-61 Transmit/Receive Front End Module (FEM) supports Class 12 GPRS, EDGE multi-slot operation, and TD-SCDMA/TDD-LTE linear transmission. Fourteen transmit/receive (TRx) ports and an integrated directional coupler enables broadband 3G/4G RF switch-through. The module consists of a CMOS controller, a low-band PA block supporting GSM850/900 bands, a high-band PA block supporting...
RTM7916-61 Key Features
- Small, low profile package
- 5.5mm ×5.3mm ×0.84mm
- 38-pad configuration
- Fully programmable MIPI RFFE control
- Fourteen low insertion loss/high linearity TRx switch ports
- Built-in IEC-pliant antenna ESD protection
- Integrated broadband directional coupler
- High efficiency
- 38% GSM850
- 37% GSM900
