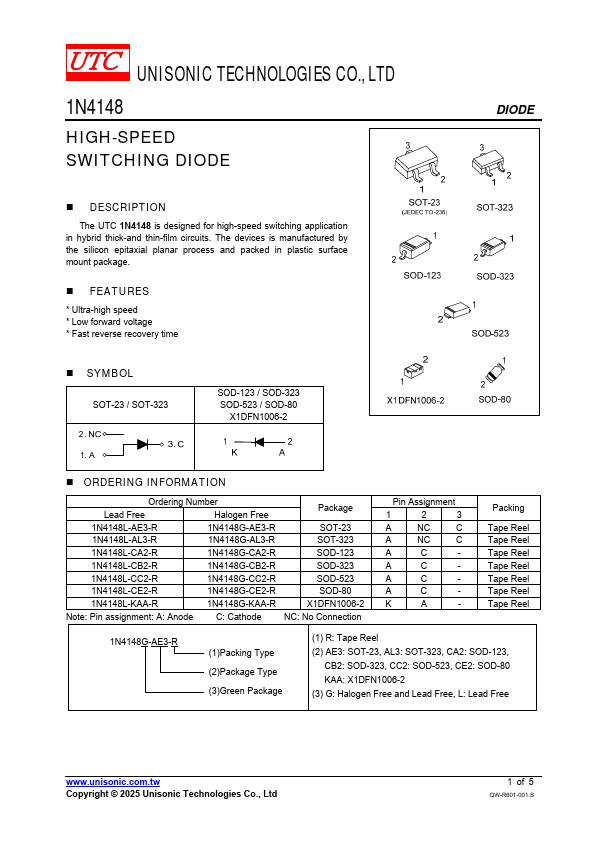

Unisonic Technologies 1N4148
1N4148 is designed for high-speed switching application in hybrid thick-and thin-film circuits. The devices is manufactured by the silicon epitaxial planar process and packed in plastic surface mount package.| Part No. | 1N4148 |
|---|---|
| Datasheet | 1N4148 Download |
| Manufacturer |  Unisonic Technologies |
| Description | HIGH-SPEED SWITCHING DIODE |
| Buy | Stock & Price |
DESCRIPTION
The UTC●
FEATURES
* Ultra-high speed * Low forward voltage * Fast reverse recovery time● SYMBOL SOT-23 / SOT-323 SOD-123 / SOD-323 SOD-523 / SOD-80 X1DFN1006-2 DIODE
● ORDERING INFORMATION Ordering Number Lead Free Halogen Free 1N4148L-AE3-R 1N4148G-AE3-R 1N4148L-AL3-R 1N4148G-AL3-R 1N4148L-CA2-R 1N4148G-CA2-R 1N4148L-CB2-R 1N4148G-CB2-R 1N4148L-CC2-R 1N4148G-CC2-R 1N4148L-CE2-R 1N4148G-CE2-R 1N4148L-KAA-R 1N4148G-KAA-R Note: Pin assignment: A: Anode C: Cathode Package SOT-23 SOT-323 SOD-123 SOD-323 SOD-523 SOD-80 X1DFN1006-2 NC: No Connection Pin Assignment 1 2 3 A NC C A NC C A C - A C - A C - A C - K A - Packing Tape Reel Tape Reel Tape Reel Tape Reel Tape Reel Tape Reel Tape Reel 1N4148G-AE3-R (1)Packing Type (2)Package Type (3)Green Package (1) R: Tape Reel (2) AE3: SOT-23, AL3: SOT-323, CA2: SOD-123, CB2: SOD-323, CC2: SOD-523, CE2: SOD-80 KAA: X1DFN1006-2 (3) G: Halogen Free and Lead Free, L: Lead Free Copyright © 2025 Unisonic Technologies Co., Ltd 1 of 5 QW-R601-...
