2SD1624 - NPN SILICON TRANSISTOR

General Description

The UTC 2SD1624 applies to voltage regulators, relay drivers, lamp drivers, and electrical equipment.

Key Features

  • S.
  • Adoption of FBET, MBIT processes.
  • Low collector-to-emitter saturation voltage.
  • Fast switching speed.
  • Large current capacity and wide ASO.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD1624 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SD1624 NPN Epitaxial Planar Silicon Transistor Kexin
2SD1624 NPN Transistor INCHANGE
2SD1624 Bipolar Transistor ON Semiconductor
2SD1620 NPN Epitaxial Planar Silicon Transistor Sanyo Semicon Device

Other Datasheets by Unisonic Technologies

Part Number Description
2SD1628 NPN SILICON TRANSISTOR
2SD1609 NPN TRANSISTOR
2SD1664 MEDIUM POWER NPN TRANSISTOR
2SD1691 NPN SILICON TRANSISTOR
2SD1060 NPN EPITAXIAL PLANAR SILICON TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

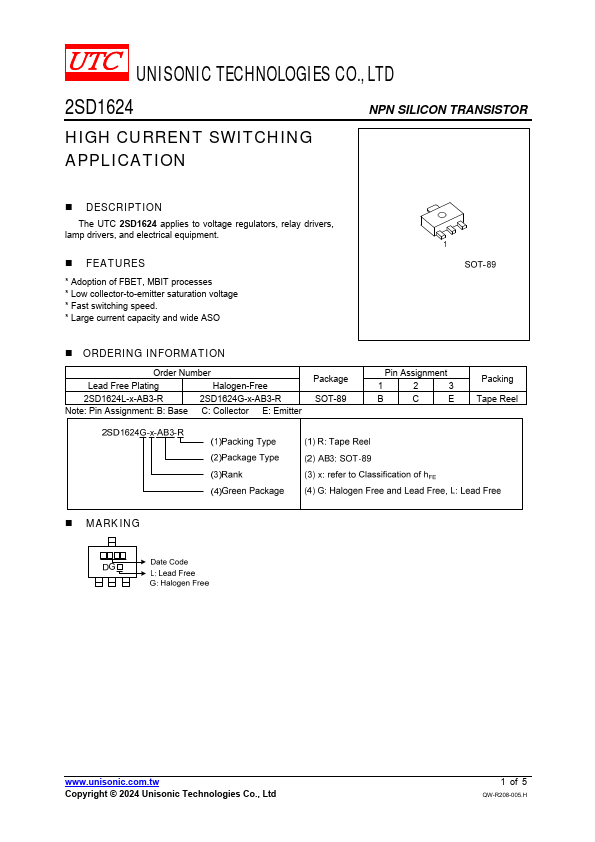

UNISONIC TECHNOLOGIES CO., LTD 2SD1624 NPN SILICON TRANSISTOR HIGH CURRENT SWITCHING APPLICATION  DESCRIPTION The UTC 2SD1624 applies to voltage regulators, relay drivers, lamp drivers, and electrical equipment.  FEATURES * Adoption of FBET, MBIT processes * Low collector-to-emitter saturation voltage * Fast switching speed. * Large current capacity and wide ASO  ORDERING INFORMATION Order Number 2SD1624G-x-AB3-R Note: Pin Assignment: B: Base C: Collector E: Emitter Package SOT-89 Pin Assignment 123 BCE Packing Tape Reel  MARKING www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 5 QW-R208-005.
