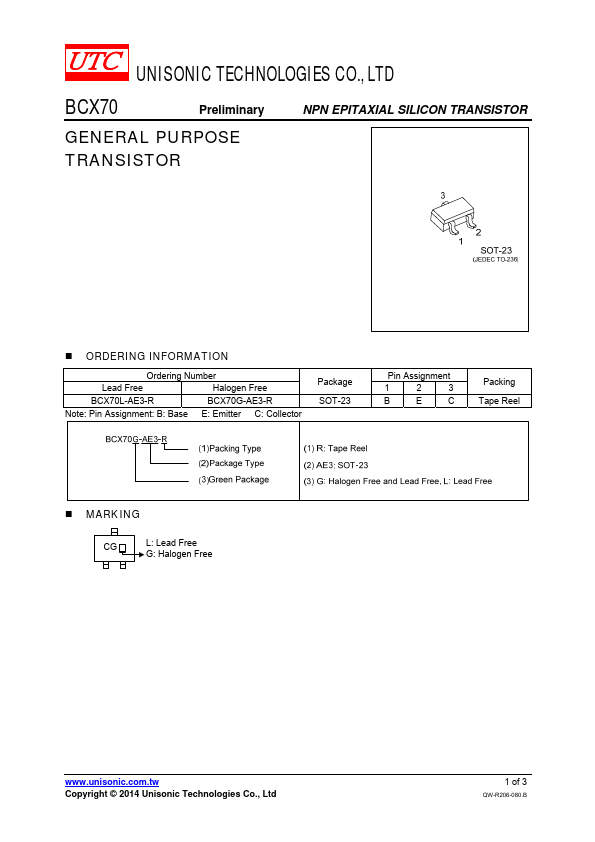

BCX70G
UNISONIC TECHNOLOGIES CO., LTD
BCX70
Preliminary
NPN EPITAXIAL SILICON TRANSISTOR
GENERAL PURPOSE TRANSISTOR
- ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
BCX70L-AE3-R
BCX70G-AE3-R
Note: Pin Assignment: B: Base E: Emitter C: Collector
Package SOT-23
Pin Assignment
Packing Tape Reel
- MARKING
L: Lead Free G: Halogen Free
.unisonic..tw Copyright © 2014 Unisonic Technologies Co., Ltd
1 of 3
QW-R206-080.B
BCX70
Preliminary
NPN EPITAXIAL SILICON TRANSISTOR

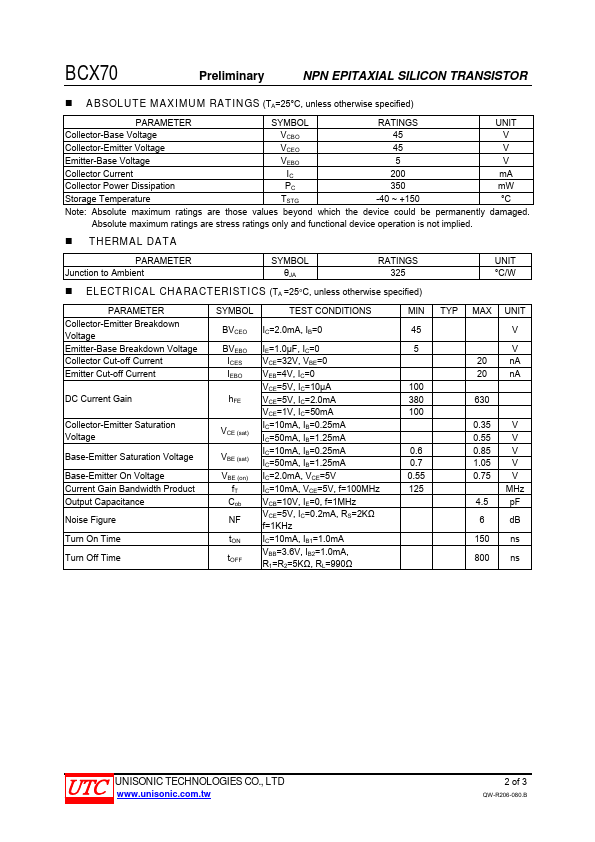

- ABSOLUTE MAXIMUM RATINGS (TA=25°C, unless otherwise specified)
PARAMETER
SYMBOL
RATINGS
UNIT
Collector-Base Voltage
VCBO
Collector-Emitter Voltage Emitter-Base Voltage
VCEO
VEBO...
