LM224 - QUADRUPLE OPERATIONAL AMPLIFIERS

General Description

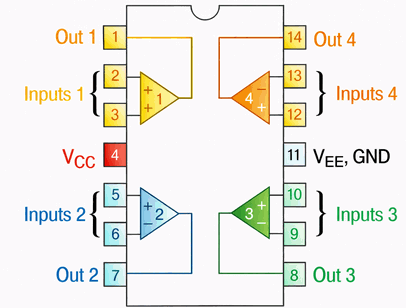

UTC LM224 consist of four independent, high-gain, frequencycompensated operational amplifiers which are designed to operate from a single power supply over a wide range of voltage.

Operation from split supplies is also possible so long as the difference between the two supplies is 3V ~ 32V.

Key Features

  • S.
  • Internally frequency compensated for unity gain.
  • Large DC voltage gain :100dB.
  • Wide operating supply range (VCC=3V~32V).
  • Input common-mode voltage includes ground.
  • Large output voltage swing: From 0V to VCC-1.5V.
  • Power drain suitable for battery operation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM224 Low power quad op amps NXP
LM224 Low-power quad operational amplifier STMicroelectronics
LM224 Quad Low Power Operational Amplifier Motorola Inc
LM224 Quad Operational Amplifier Fairchild Semiconductor
LM224 Low Power Quad Operational Amplifiers National Semiconductor

Other Datasheets by Unisonic Technologies

Part Number Description
LM2058 QUAD OPERATIONAL AMPLIFIERS
LM239 QUAD DIFFERENTIAL COMPARATOR
LM2902 QUADRUPLE OPERATIONAL AMPLIFIERS
LM2904 DUAL OPERATIONAL AMPLIFIER
LM2904B DUAL OPERATIONAL AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
UNISONIC TECHNOLOGIES CO.,LTD LM224 LINEAR INTEGRATED CIRCUIT QUADRUPLE OPERATIONAL AMPLIFIERS  DESCRIPTION UTC LM224 consist of four independent, high-gain, frequencycompensated operational amplifiers which are designed to operate from a single power supply over a wide range of voltage. Operation from split supplies is also possible so long as the difference between the two supplies is 3V ~ 32V. The low supply current drain is independent of the magnitude of the supply voltage. The device can easily be implemented in single supply voltage system, including transducer amplifiers, DC gain blocks, and all of conventional OP Amp circuits.
