MBR20100 - SCHOTTKY BARRIER RECTIFIER

Unisonic Technologies

General Description

, at any time and without notice.

This document supersedes and replaces all information supplied prior to the publication hereof.

Key Features

S.
20 Amps Total (10 Amps Per Diode Leg).
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
High Surge Capability.
Low Power Loss/High Efficiency.
SYMBOL TO-277 DO-201AD DIODE.

📥 Download Datasheet

MBR20100 schottky barrier rectifier by Unisonic Technologies - Datasheet Preview

Datasheet Details

Part number	MBR20100
Manufacturer	Unisonic Technologies
File Size	239.98 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR20100 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MBR20100	20A High Power Schottky Barrier Rectifiers	CITC
MBR20100	20 Amp Schottky Barrier Rectifier	Micro Commercial Components
MBR20100	Schottky Barrier Rectifier	Inchange Semiconductor
MBR20100	20.0 AMP SCHOTTKY BARRIER RECTIFIERS	Byte Sonic
MBR20100	High Power Schottky Barrier Rectifier	Sooner

Other Datasheets by Unisonic Technologies

Part Number	Description
MBR20100C	SCHOTTKY BARRIER RECTIFIER
MBR20125C	20A SCHOTTKY BARRIER RECTIFIER
MBR20130C	20A SCHOTTKY BARRIER RECTIFIER
MBR20150C	SCHOTTKY BARRIER RECTIFIER
MBR20200C	SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

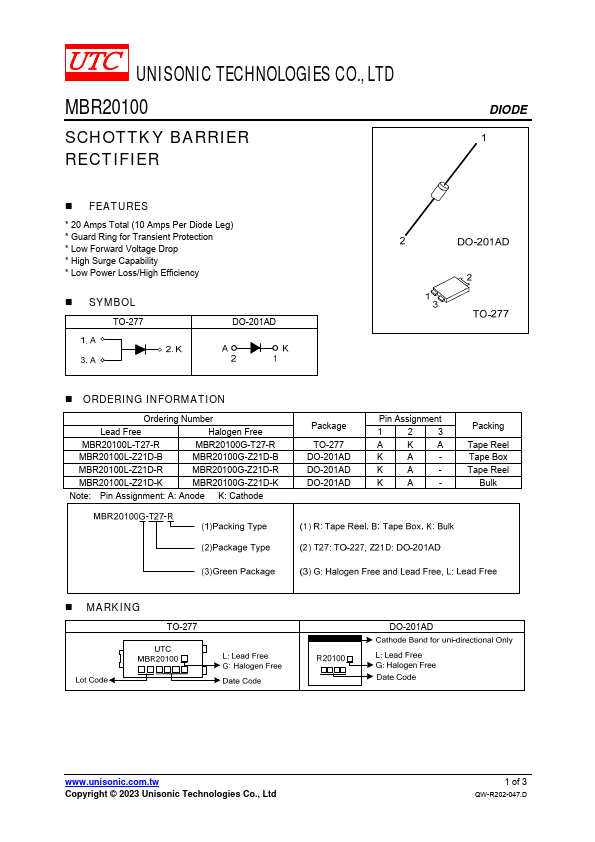

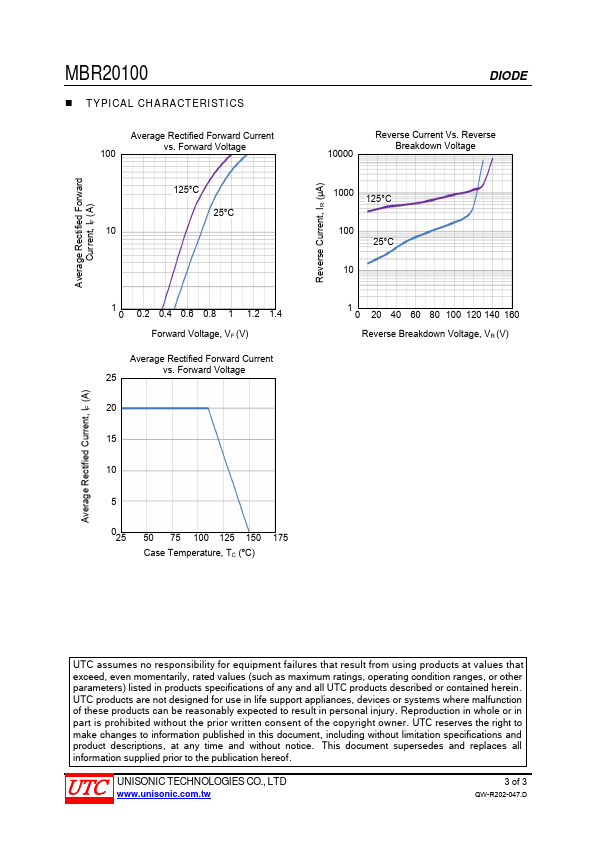

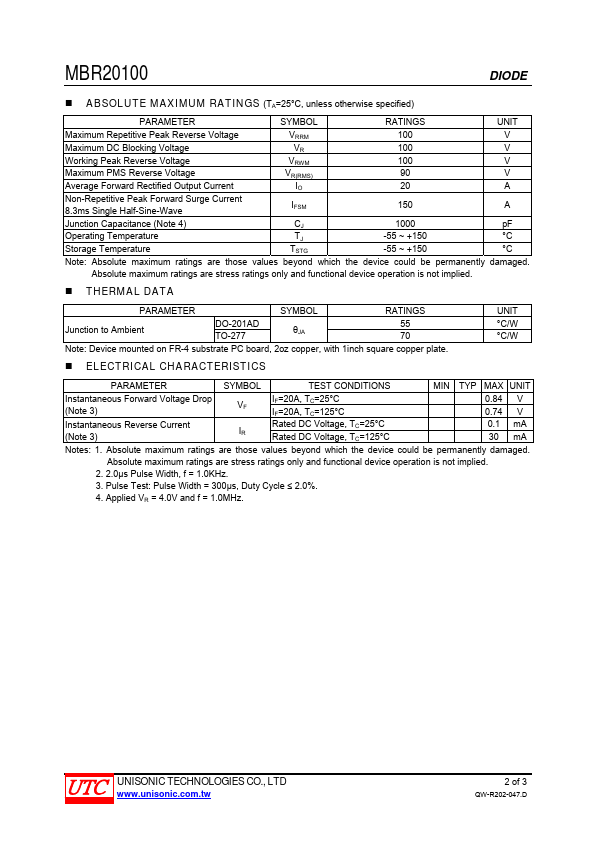

UNISONIC TECHNOLOGIES CO., LTD MBR20100 Preliminary SCHOTTKY BARRIER RECTIFIER  FEATURES * 20 Amps Total (10 Amps Per Diode Leg) * Guard Ring for Transient Protection * Low Forward Voltage Drop * High Surge Capability * Low Power Loss/High Efficiency  SYMBOL TO-277 DO-201AD DIODE  ORDERING INFORMATION Ordering Number Lead Free Halogen Free MBR20100L-T27-R MBR20100G-T27-R MBR20100L-Z21D-B MBR20100G-Z21D-B MBR20100L-Z21D-R MBR20100G-Z21D-R MBR20100L-Z21D-K MBR20100G-Z21D-K Note: Pin Assignment: A: Anode K: Cathode Package TO-277 DO-201AD DO-201AD DO-201AD Pin Assignment 123 AKA KA KA KA - Packing Tape Reel Tape Box Tape Reel Bulk  MARKING TO-277 DO-201AD www.unisonic.com.tw Copyright © 2019 Unisonic Technologies Co., Ltd 1 of 3 QW-R202-047.
