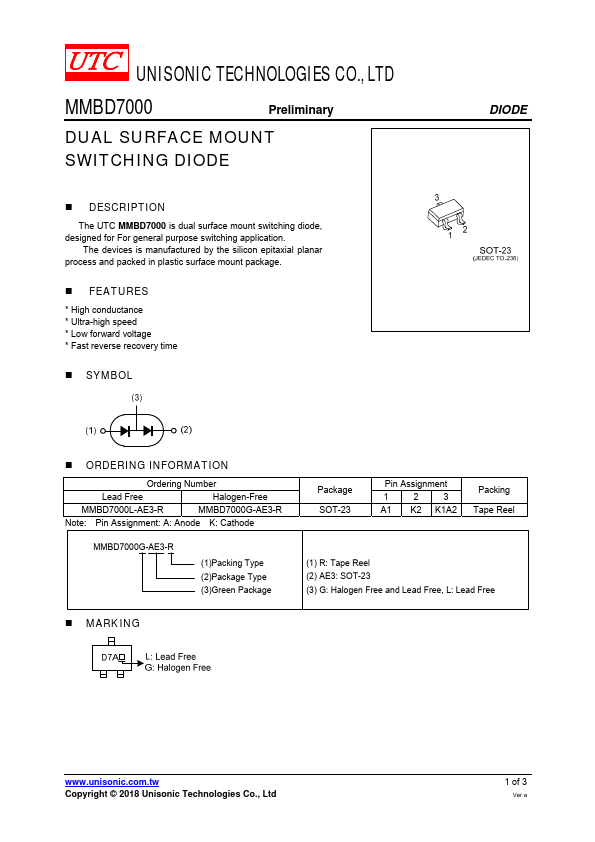

MMBD7000
DESCRIPTION
The UTC MMBD7000 is dual surface mount switching diode, designed for For general purpose switching application.
The devices is manufactured by the silicon epitaxial planar process and packed in plastic surface mount package.
- FEATURES
- High conductance
- Ultra-high speed
- Low forward voltage
- Fast reverse recovery time
- SYMBOL
DIODE
- ORDERING INFORMATION
Ordering Number
Lead Free
Halogen-Free
MMBD7000L-AE3-R
MMBD7000G-AE3-R
Note: Pin Assignment: A: Anode K: Cathode
MMBD7000G-AE3-R
(1)Packing Type (2)Package Type (3)Green Package
Package SOT-23
Pin Assignment
A1 K2 K1A2
Packing Tape Reel
(1) R: Tape Reel (2) AE3: SOT-23 (3) G: Halogen Free and Lead Free, L: Lead Free
- MARKING
.unisonic..tw Copyright © 2018 Unisonic Technologies Co., Ltd
1 of 3
Ver.a
Preliminary
DIODE
- ABSOLUTE MAXIMUM RATINGS (TA=25℃, unless otherwise specified)
PARAMETER
SYMBOL
RATINGS
UNIT
Non-Repetitive Peak Reverse...
