TDA2050 - 32W HI-FI AUDIO POWER AMPLIFIER

General Description

The UTC TDA2050 is a monolithic integrated circuit with high power capability and is designed to use as an class AB audio amplifier.

It can deliver typically 50W music power into 4Ω load over 1 sec at VS=22.5V, f = 1KHz.

Key Features

  • High output power (50W Music Power IEC 268.3 Rules).
  • High operating supply voltage (50V).
  • Single or split supply operations.
  • Very low distortion.
  • Short circuit protection (OUT to GND).
  • Thermal shutdown.
  • Pb-free plating product number: TDA2050L.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TDA2050 32W Hi-Fi AUDIO POWER AMPLIFIER ST Microelectronics
TDA2051 40W Hi-Fi AUDIO POWER AMPLIFIER ST Microelectronics
TDA2052 60W Hi-Fi AUDIO POWER AMPLIFIER ST Microelectronics
TDA2054M Preamplifier ST Microelectronics
TDA2000-V Vane Axial Fan ETC

Other Datasheets by Unisonic Technologies

Part Number Description
TDA2003 10W CAR RADIO AUDIO AMPLIFIER
TDA2004 10+10W Stereo AMplifier
TDA2005 20W BRIDGE AMPLIFIER
TDA2009 10 +10W STEREO AMPLIFIER
TDA2030 14W HI-FI AUDIO AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

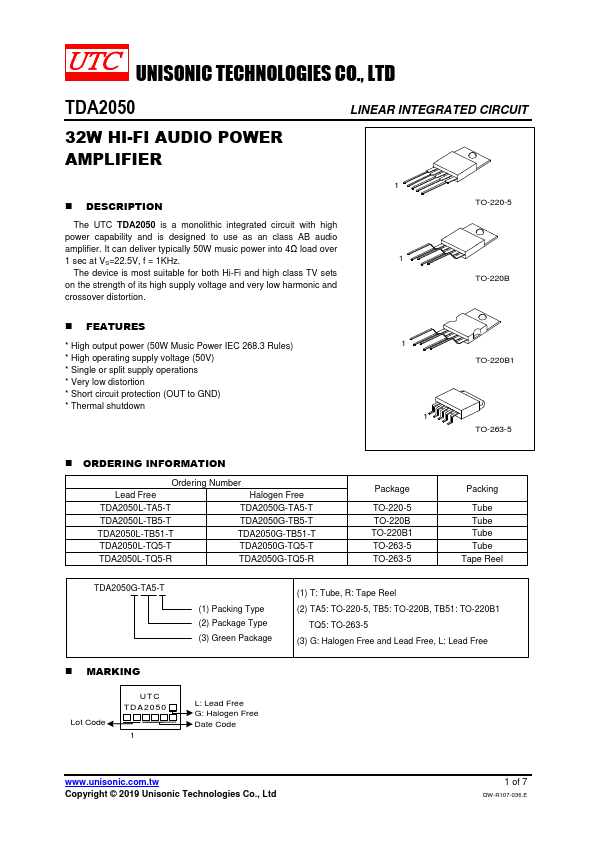

www.DataSheet4U.com UNISONIC TECHNOLOGIES CO., LTD TDA2050 32W HI-FI AUDIO POWER AMPLIFIER DESCRIPTION The UTC TDA2050 is a monolithic integrated circuit with high power capability and is designed to use as an class AB audio amplifier. It can deliver typically 50W music power into 4Ω load over 1 sec at VS=22.5V, f = 1KHz. The device is most suitable for both Hi-Fi and high class TV sets on the strength of its high supply voltage and very low harmonic and crossover distortion. LINEAR INTEGRATED CIRCUIT 1 TO-220B FEATURES * High output power (50W Music Power IEC 268.
