Unisonic Technologies TL084
TL084 is a high speed J-FET input quad operational amplifier. It incorporates well matched, high voltage J-FET and bipolar transistors on a monolithic integrated circuit. The device features high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.| Part No. | TL084 |
|---|---|
| Datasheet | TL084 Download |
| Manufacturer |  Unisonic Technologies |
| Description | LOW NOISE QUAD J-FET OPERATIONAL AMPLIFIER |
| Buy | Stock & Price |
DESCRIPTION
The UTC●
FEATURES
*Low Power Consumption *Wide Common-Mode (Up To Vcc+) and Differential Voltage Range *Low Input Bias and Offset Current *Low Noise eN = 15 (typ.) *Output Short-Circuit Protection *High Input Impedance J-FET Input Stage *Low Harmonic Distortion: 0.01% (typ.) *Internal Frequency Compensation *Latch up Free Operation● ORDERING INFORMATION Ordering Number Lead Free Halogen Free TL084L-D14-T TL084G-D14-T TL084L-P14-R TL084G-P14-R TL084L-S14-R TL084G-S14-R Package DIP-14 TSSOP-14 SOP-14 DIP-14 SOP-14 TSSOP-14 Packing Tube Tape Reel Tape Reel TL084G-D14-T (1)Packing Type (2)Package Type (3)Green Package (1) T: Tube, R: Tape Reel (2) D14: DIP-14, S14: SOP-14, P14: TSSOP-14 (3) G: Halogen Free and Lead Free, L: Lead Free
● MARKING DIP-14 SOP-14 / TSSOP-14 Copyright © 2018 Unisonic Technologies Co., Ltd 1 of 6 QW-R105-035.D TL084

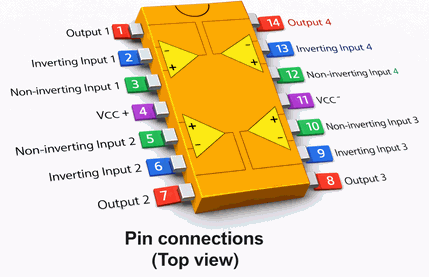

● PIN CONFIGURATIONS LINEAR INTEGRATED CIRCUIT
● SCHEMATIC DIAGRAM UNISONIC TECHNOLOGIES CO., LTD 2 of 6 QW-R105-035.D TL084 LINEAR INTE...
