LR06 - Metal Strip Chip Resistors

Download the LR06 datasheet PDF. This datasheet also covers the LR05 variant, as both devices belong to the same metal strip chip resistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • E = Environmental Protection, Lead Free, or Standard type. 3. Ordering Procedure (Example: LR06 1W ±1% 1mΩ T/R-5000) LR0 6 1W F 1 0 0N T 5 E Product Type: Fill-in 4 digits with the chip resistor type as follows: LR05 LR06 LR12 LR25 LR28 LR27 Wattage: 07=3/4W 1W=1W 2W=2W 3W=3W 4W=4W 5W=5W D=±0.5% F=±1% G=±2% J=±5% Resistance Value: 5%(E‐24 series): The 1st digit will be “0”; the 2nd & 3rd digits are for the significant figures of the resistance and the 4th digit indicate the number.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LR05-Uniroyal.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LR06
Manufacturer Uniroyal
File Size 611.46 KB
Description Metal Strip Chip Resistors
Datasheet download datasheet LR06 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LR001 (LR0xx) LED ETC
LR002 (LR0xx) LED ETC
LR003 (LR0xx) LED ETC
LR006 (LR0xx) LED ETC
LR008 (LR0xx) LED ETC

Other Datasheets by Uniroyal

Part Number Description
LR05 Metal Strip Chip Resistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

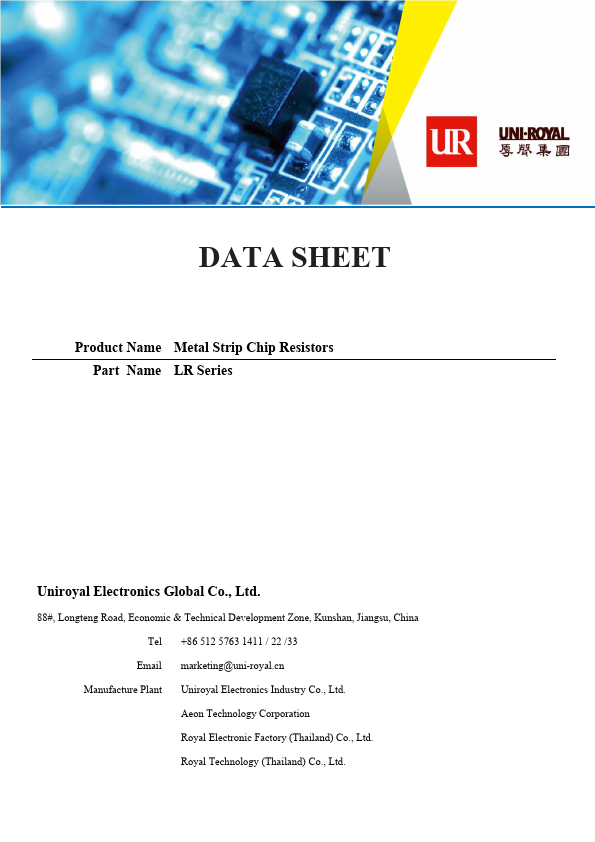

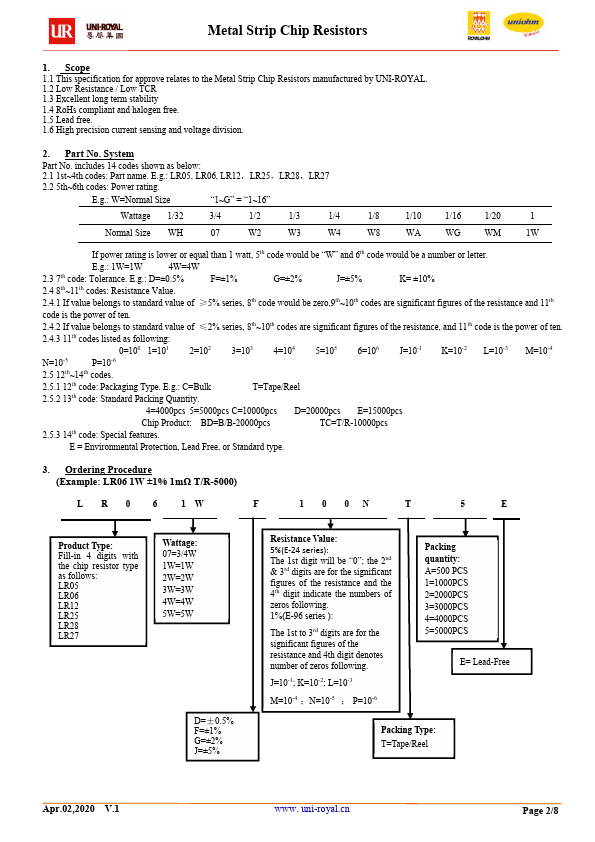

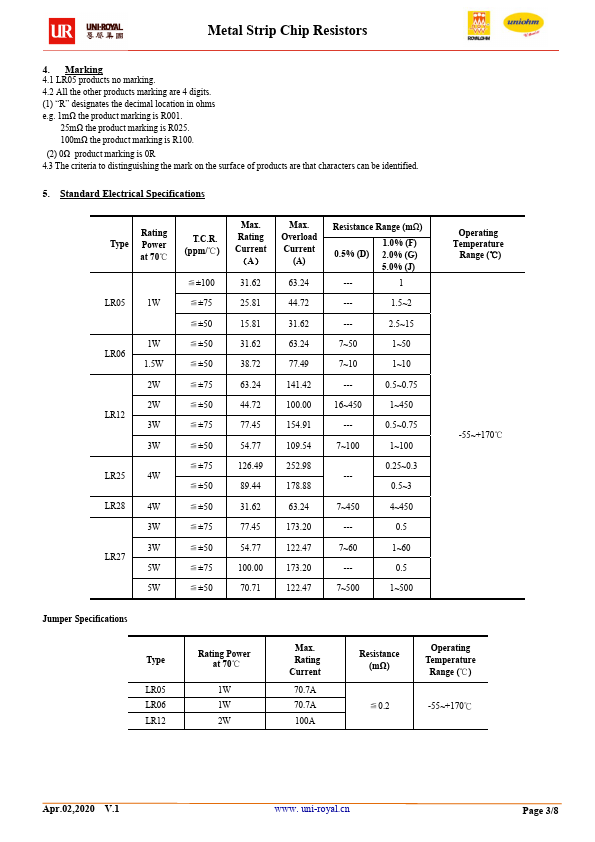

DATA SHEET Product Name Metal Strip Chip Resistors Part Name LR Series Uniroyal Electronics Global Co., Ltd. 88#, Longteng Road, Economic & Technical Development Zone, Kunshan, Jiangsu, China Tel +86 512 5763 1411 / 22 /33 Email marketing@uni-royal.cn Manufacture Plant Uniroyal Electronics Industry Co., Ltd. Aeon Technology Corporation Royal Electronic Factory (Thailand) Co., Ltd. Royal Technology (Thailand) Co., Ltd. Metal Strip Chip Resistors 1. Scope 1.1 This specification for approve relates to the Metal Strip Chip Resistors manufactured by UNI-ROYAL. 1.2 Low Resistance / Low TCR 1.3 Excellent long term stability 1.4 RoHs compliant and halogen free. 1.5 Lead free. 1.6 High precision current sensing and voltage division. 2. Part No. System Part No.
