LR12 Datasheet Metal Strip Chip Resistors

Manufacturer: Uniroyal

📥 Download Datasheet

Datasheet Details

Part number LR12
Manufacturer Uniroyal
File Size 601.55 KB
Description Metal Strip Chip Resistors
Datasheet download datasheet LR12 Datasheet

Overview

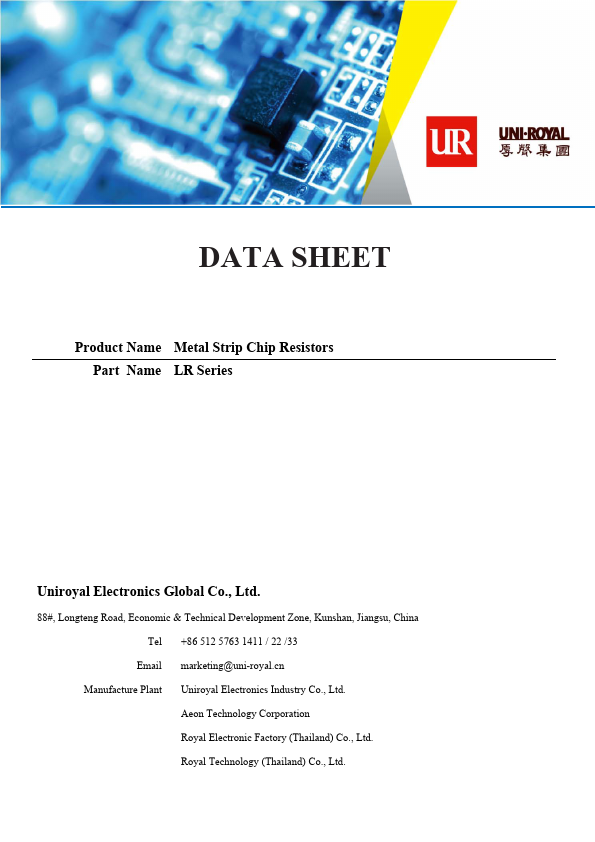

DATA SHEET Product Name Metal Strip Chip Resistors Part Name LR Series Uniroyal Electronics Global Co., Ltd.

Key Features

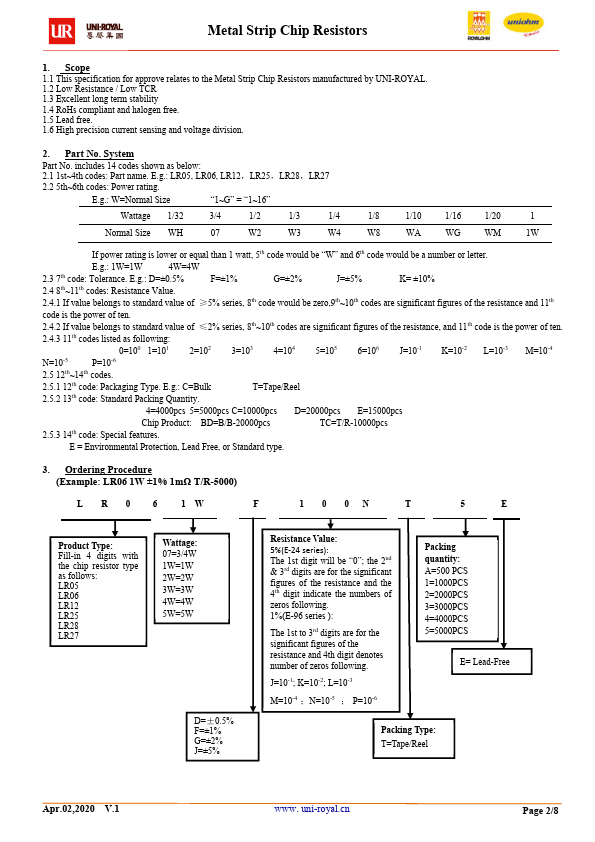

  • E = Environmental Protection, Lead Free, or Standard type. 3. Ordering Procedure (Example: LR06 1W ±1% 1mΩ T/R-5000) LR0 6 1W F 1 0 0N T 5 E Product Type: Fill-in 4 digits with the chip resistor type as follows: LR05 LR06 LR12 LR25 LR28 LR27 Wattage: 07=3/4W 1W=1W 2W=2W 3W=3W 4W=4W 5W=5W D=±0.5% F=±1% G=±2% J=±5% Resistance Value: 5%(E‐24 series): The 1st digit will be “0”; the 2nd & 3rd digits are for the significant figures of the resistance and the 4th digit indicate the number.
