LR25 - Metal Strip Chip Resistors

Features

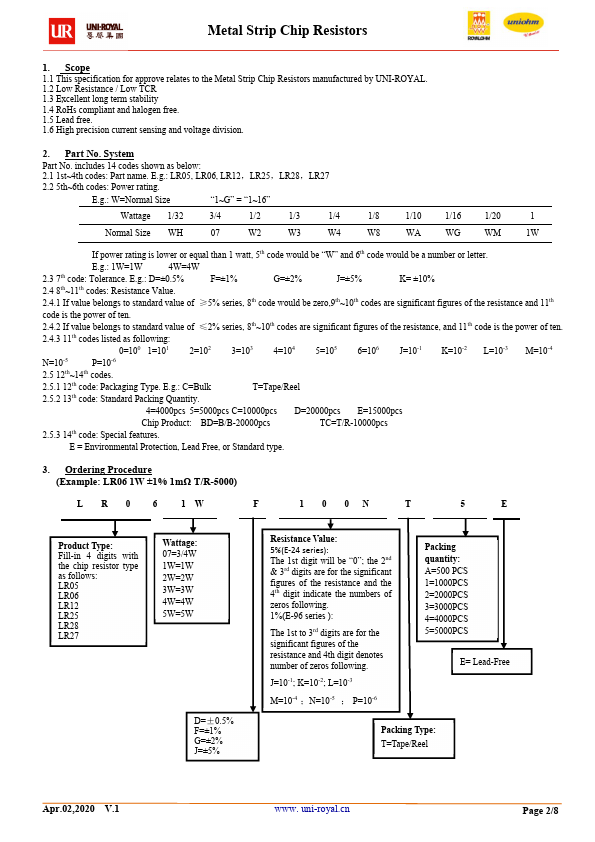

  • E = Environmental Protection, Lead Free, or Standard type. 3. Ordering Procedure (Example: LR06 1W ±1% 1mΩ T/R-5000) LR0 6 1W F 1 0 0N T 5 E Product Type: Fill-in 4 digits with the chip resistor type as follows: LR05 LR06 LR12 LR25 LR28 LR27 Wattage: 07=3/4W 1W=1W 2W=2W 3W=3W 4W=4W 5W=5W D=±0.5% F=±1% G=±2% J=±5% Resistance Value: 5%(E‐24 series): The 1st digit will be “0”; the 2nd & 3rd digits are for the significant figures of the resistance and the 4th digit indicate the number.

📥 Download Datasheet

Datasheet preview – LR25

Datasheet Details

Part number LR25
Manufacturer Uniroyal
File Size 601.56 KB
Description Metal Strip Chip Resistors
Datasheet download datasheet LR25 Datasheet
Additional preview pages of the LR25 datasheet.

📁 Similar Datasheet

  • LR250 - LLNRK/LLSRK Series POWR-PRO Class RK1 (Littelfuse)
  • LR256 - White LED Step-Up Converter (LRC)
  • LR2596 - 3A PWM Buck DC/DC Converter (LRC)
  • LR2045 - Micro Ohm Meter (Motwane)
  • LR2045-S - Micro Ohm Meter (Motwane)
  • LR20D-A - MINIATURE POWER LATCH RELAY (YMTech)
  • LR20D-C - MINIATURE POWER LATCH RELAY (YMTech)
  • LR20S-A - MINIATURE POWER LATCH RELAY (YMTech)
  • LR20S-C - MINIATURE POWER LATCH RELAY (YMTech)
  • LR20XWA - Alkaline-Zinc/Manganese Dioxide (Panasonic)
Other Datasheets by Uniroyal
  • LR27 - Metal Strip Chip Resistors
  • LR28 - Metal Strip Chip Resistors

Full PDF Text Transcription

Click to expand full text

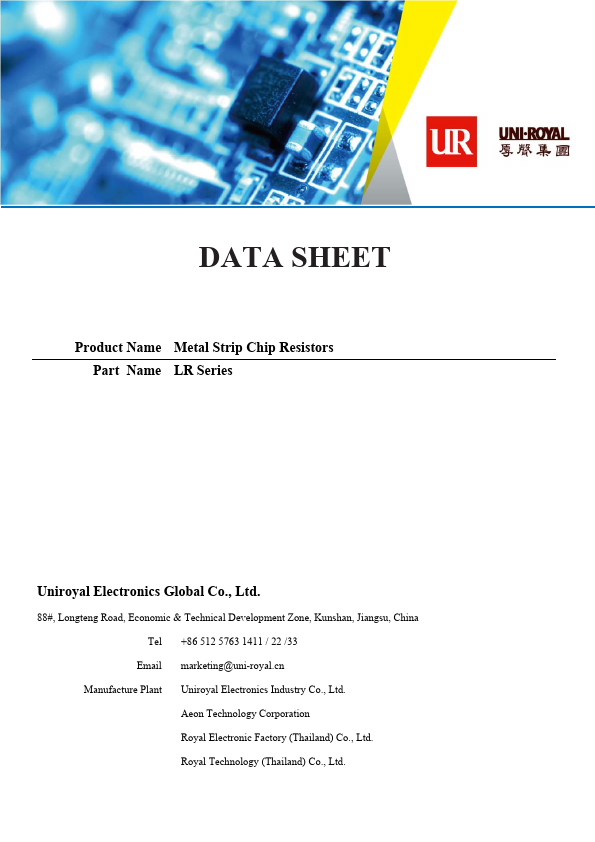

DATA SHEET Product Name Metal Strip Chip Resistors Part Name LR Series Uniroyal Electronics Global Co., Ltd. 88#, Longteng Road, Economic & Technical Development Zone, Kunshan, Jiangsu, China Tel +86 512 5763 1411 / 22 /33 Email marketing@uni-royal.cn Manufacture Plant Uniroyal Electronics Industry Co., Ltd. Aeon Technology Corporation Royal Electronic Factory (Thailand) Co., Ltd. Royal Technology (Thailand) Co., Ltd. Metal Strip Chip Resistors 1. Scope 1.1 This specification for approve relates to the Metal Strip Chip Resistors manufactured by UNI-ROYAL. 1.2 Low Resistance / Low TCR 1.3 Excellent long term stability 1.4 RoHs compliant and halogen free. 1.5 Lead free. 1.6 High precision current sensing and voltage division. 2. Part No. System Part No.
