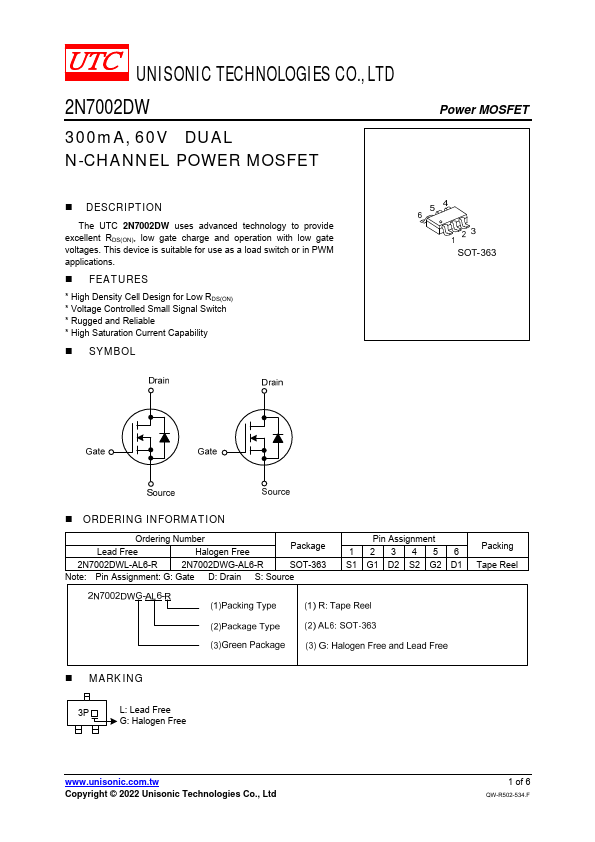

2N7002DW
DESCRIPTION
The UTC 2N7002DW uses advanced technology to provide excellent RDS(ON), low gate charge and operation with low gate voltages. This device is suitable for use as a load switch or in PWM applications.
- FEATURES
- High Density Cell Design for Low RDS(ON)
- Voltage Controlled Small Signal Switch
- Rugged and Reliable
- High Saturation Current Capability
- SYMBOL
Power MOSFET
- ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
Package
2N7002DWL-AL6-R
2N7002DWG-AL6-R
SOT-363
Note: Pin Assignment: G: Gate D: Drain S: Source
Pin Assignment 123456 S1 G1 D2 S2 G2 D1
Packing Tape Reel
- MARKING
3P
L: Lead Free
G: Halogen Free
.unisonic..tw Copyright © 2022 Unisonic Technologies Co., Ltd
1 of 6
QW-R502-534.F
Power MOSFET

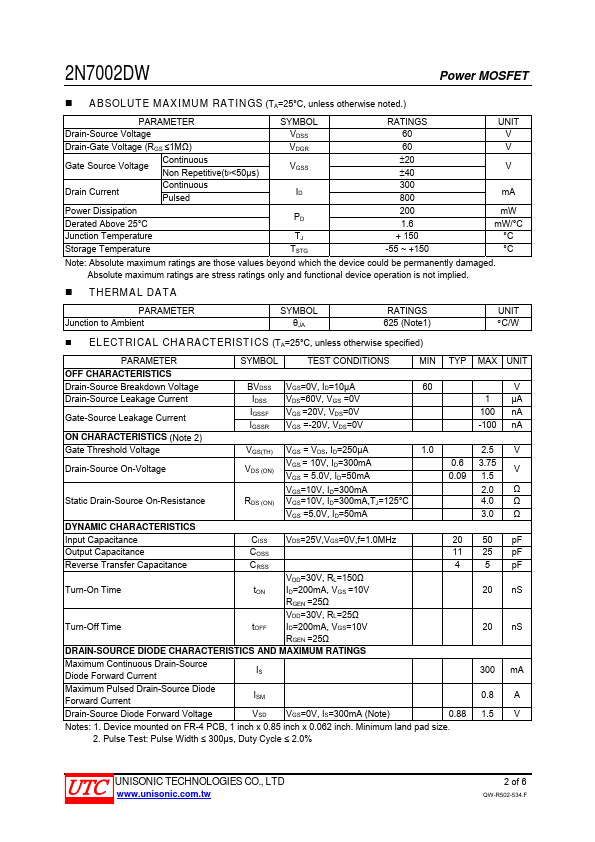

- ABSOLUTE MAXIMUM RATINGS (TA=25°C, unless otherwise noted.)
PARAMETER
SYMBOL
RATINGS
UNIT
Drain-Source Voltage
VDSS
Drain-Gate Voltage (RGS ≤1MΩ)
VDGR
Gate Source...
