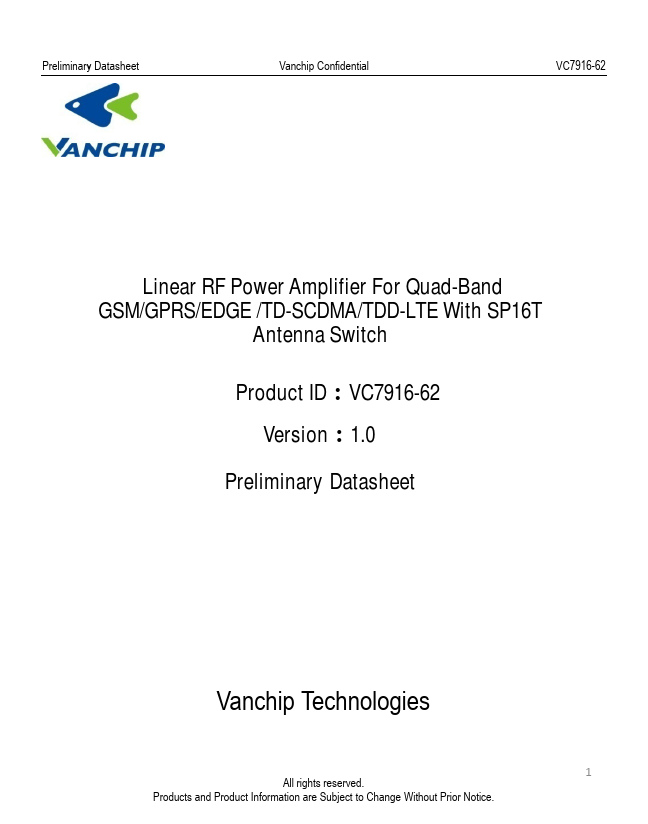

VC7916-62 Datasheet | VANCHIP

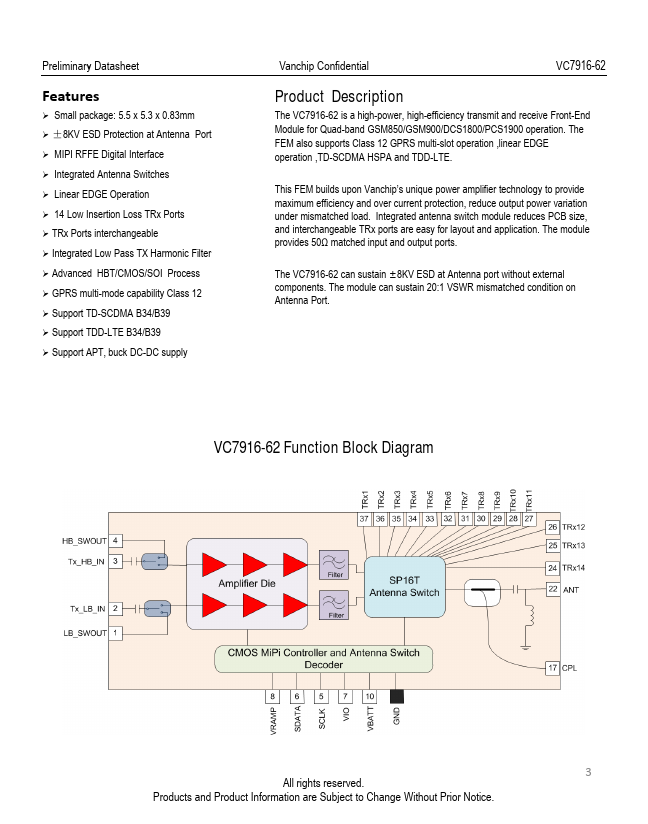

Features ¾ Small package: 5.5 x 5.3 x 0.83mm ¾ ±8KV ESD Protection at Antenna Port ¾ MIPI RFFE Digital Interface ¾ Integrated Antenna Switches ¾ Linear EDGE Operation ¾ 14 Low Insertion Loss TRx Ports ¾ TRx Ports interchangeable ¾ Integrated Low Pass TX Harmonic Filter ¾ Advanced HBT/CMOS/SOI Process ¾ GPRS multi-mode capability Class 12 ¾ Support TD-SCDMA B34/B39 ¾ Support TDD-LTE B34/B39 ¾ Support APT, buck DC-DC supply Vanchip Confidential Product Description The VC7916-62 is a high-power, high-efficiency transmit and receive Front-End Module for Quad-band GSM850/GSM900/DCS1800/PCS1900 operation. The FEM also supports Class 12 GPRS multi-slot operation ,linear EDGE operation ,TD-SCDMA HSPA and TDD-LTE. This FEM builds upon Vanchip’s unique power amplifier technology to provide maximum efficiency and over current protection, reduce output power variation under mismatched load. Integrated antenna switch module reduces PCB size, and interchangeable TRx ports are easy for layout and application. The module provides 50Ω matched input and output ports. The VC7916-62 can sustain ±8KV ESD at Antenna port without external ponents. The module can sustain 20:1 VSWR mismatched condition on Antenna Port. VC7916-62 Function Block Diagram All rights reserved. Products and Product Information are Subject to Change Without Prior Notice. Preliminary Datasheet Absolute Maximum Ratings 1,2,3 Vanchip Confidential Supply Parameter Symbol Min. Typ. Max. Unit VBATT -1.2 - 6 Power Control Voltage Vramp -0.3 - 3 Input RF Power Pin - - 15 d Bm Max. Burst Duty Cycle - - % Output Load VSWR (Ruggedness) Current Continuous During Burst 3 MIPI Supply Voltage Ru I_VBATT...
