2SJ206 datasheet by VBsemi.
| Part number | 2SJ206 |
|---|---|
| Datasheet | 2SJ206-VBsemi.pdf |
| File Size | 196.27 KB |
| Manufacturer | VBsemi |
| Description | 30V P-Channel MOSFET |
|
|

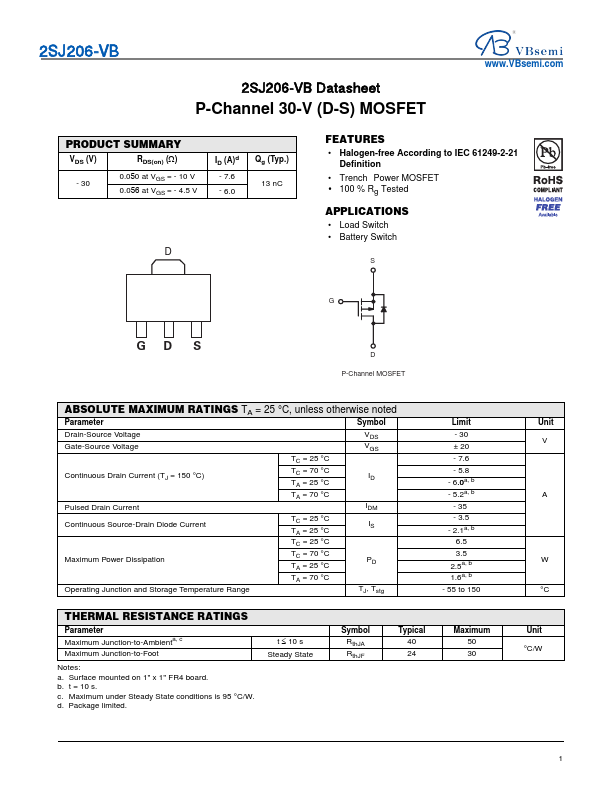

2SJ206-VB 2SJ206-VB Datasheet P-Channel 30-V (D-S) MOSFET .VBsemi. PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.050 at VGS = - 10 V 0.056 at VGS = - 4.5 V ID (A)d - 7.6 - 6.0 Qg (Typ.) 13 nC.
