2SJ461 - 60V P-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
High-Side Switching.
Low On-Resistance: 3 .
Low Threshold: - 2 V (typ. ).
Fast Swtiching Speed: 20 ns (typ. ).
Low Input Capacitance: 20 pF (typ. ).
Compliant to RoHS Directive 2002/95/EC TO-236 (SOT-23) G1 S2 3D S G D P-Channel MOSFET.

2SJ461 60v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ461
Manufacturer	VBsemi
File Size	223.15 KB
Description	60V P-Channel MOSFET
Datasheet	2SJ461 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ461	P-Channel MOSFET	NEC
2SJ461	P-Channel MOSFET	Kexin
2SJ460	P-Channel MOSFET	NEC
2SJ462	P-Channel MOSFET	NEC
2SJ463A	P-Channel MOSFET	NEC

Other Datasheets by VBsemi

Part Number	Description
2SJ492	60V P-Channel MOSFET
2SJ0582	Power MOSFET
2SJ166	60V P-Channel MOSFET
2SJ168	P-Channel MOSFET
2SJ177	P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

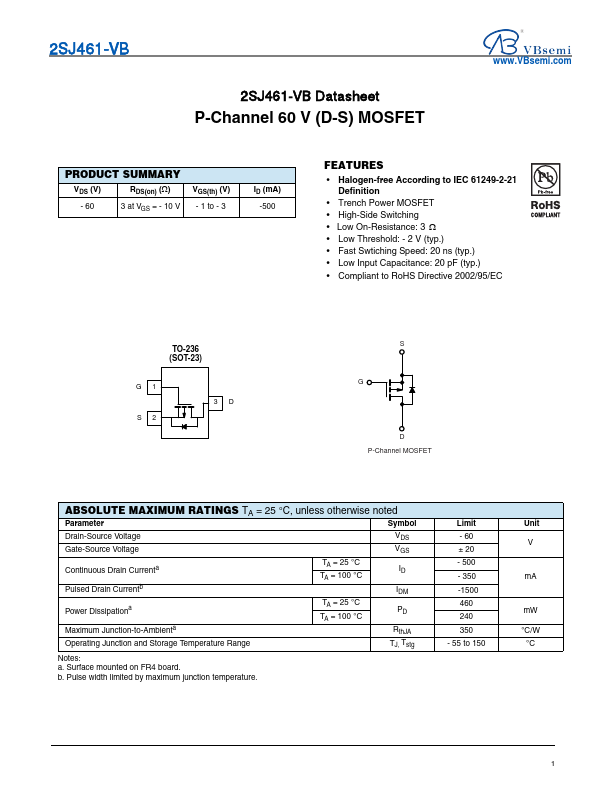

2SJ461-VB 2SJ461-VB Datasheet P-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () - 60 3 at VGS = - 10 V VGS(th) (V) - 1 to - 3 ID (mA) -500 FEATURES • Halogen-free According to IEC 61249-2-21 Definition • Trench Power MOSFET • High-Side Switching • Low On-Resistance: 3  • Low Threshold: - 2 V (typ.) • Fast Swtiching Speed: 20 ns (typ.) • Low Input Capacitance: 20 pF (typ.
