2SJ607-Z - 60V P-Channel MOSFET

VBsemi

Key Features

Trench Power MOSFET.
Package with Low Thermal Resistance.
100 % Rg Tested Available RoHS.

2SJ607-Z 60v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ607-Z
Manufacturer	VBsemi
File Size	251.12 KB
Description	60V P-Channel MOSFET
Datasheet	2SJ607-Z Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ607-ZJ	P-Channel MOSFET	Kexin
2SJ607	MOS FIELD EFFECT TRANSISTOR	NEC
2SJ607	MOS Field Effect Transistor	Kexin
2SJ600	P-Channel Power MOSFET	NEC
2SJ600	MOSFET	Kexin

Other Datasheets by VBsemi

Part Number	Description
2SJ607	60V P-Channel MOSFET
2SJ601	60V P-Channel MOSFET
2SJ602	60V P-Channel MOSFET
2SJ603	60V P-Channel MOSFET
2SJ604	60V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

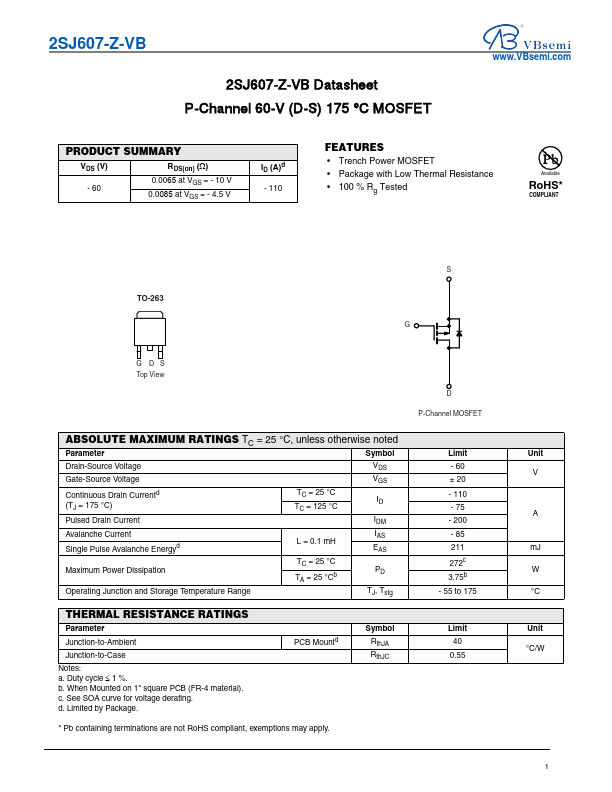

2SJ607-Z-VB 2SJ607-Z-VB Datasheet P-Channel 60-V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 60 0.0065 at VGS = - 10 V 0.0085 at VGS = - 4.5 V ID (A)d - 110 FEATURES • Trench Power MOSFET • Package with Low Thermal Resistance • 100 % Rg Tested Available RoHS* COMPLIANT TO-263 S G G DS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Currentd (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Avalanche Current Single Pulse Avalanche Energyd IAS L = 0.
