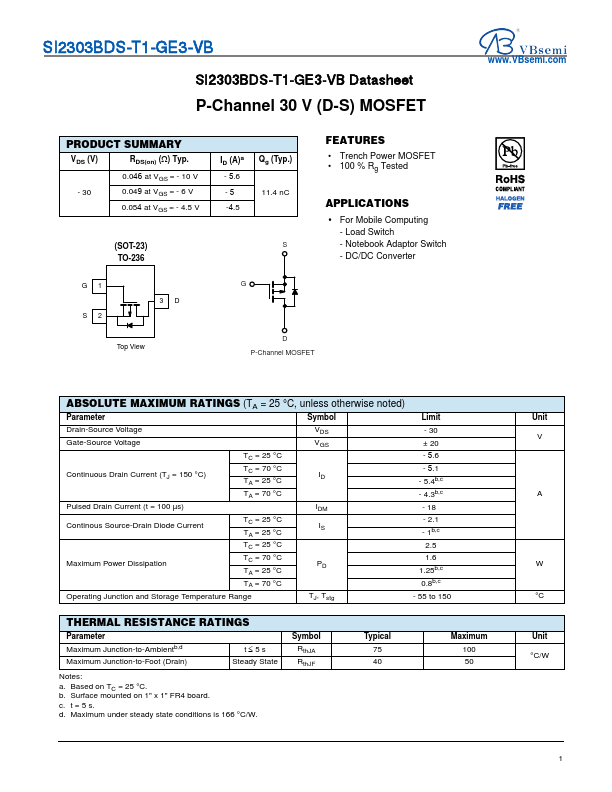

Datasheet Summary
SI2303BDS-T1-GE3-VB
SI2303BDS-T1-GE3-VB Datasheet
P-Channel 30 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) () Typ.
0.046 at VGS =
- 10 V
- 30
0.049 at VGS =
- 6 V
0.054 at VGS =
- 4.5 V
ID (A)a
- 5.6 -5 -4.5
Qg (Typ.) 11.4 nC
(SOT-23)
TO-236
Features
- Trench Power MOSFET
- 100 % Rg Tested
APPLICATIONS
- For Mobile puting
- Load Switch
- Notebook Adaptor Switch
- DC/DC Converter
G1 S2
3D
Top View
D P-Channel...
