SI3437DV-T1-GE3 - 100V N-Channel MOSFET

Key Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • Trench Power MOSFET.
  • Low On-Resistance.
  • 100 % Rg Tested.
  • Compliant to RoHS Directive 2002/95/EC.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI3437DV-HF P-Channel MOSFET Kexin
SI3437DV P-Channel MOSFET Kexin
Si3437DV P-Channel MOSFET Vishay
SI3430DV N-channel MOSFET Vishay Siliconix
SI3430DY N-Channel MOSFET Vishay Siliconix

Other Datasheets by VBsemi

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

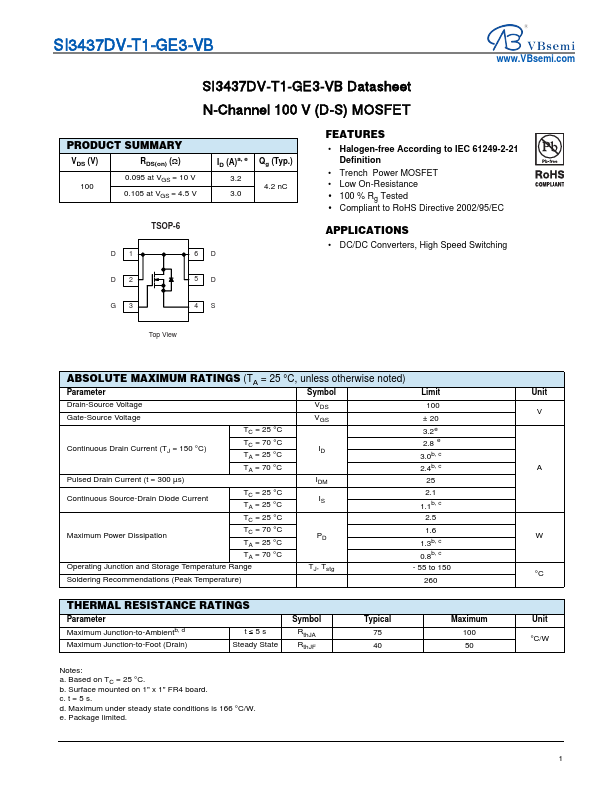

SI3437DV-T1-GE3-VB www.VBsemi.com SI3437DV-T1-GE3-VB Datasheet N-Channel 100 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 0.095 at VGS = 10 V 100 0.105 at VGS = 4.5 V ID (A)a, e 3.2 3.0 Qg (Typ.) 4.2 nC TSOP-6 D1 6D FEATURES • Halogen-free According to IEC 61249-2-21 Definition • Trench Power MOSFET • Low On-Resistance • 100 % Rg Tested • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • DC/DC Converters, High Speed Switching D2 5D G3 4S Top View ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current (t = 300 µs) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C IDM 100 ± 20 3.2e 2.8 e 3.0b, c 2.
