SSG4890N - 100V N-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
100 % Rg and UIS Tested.
Compliant to RoHS Directive 2002/95/EC.

SSG4890N 100v n-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	SSG4890N
Manufacturer	VBsemi
File Size	259.91 KB
Description	100V N-Channel MOSFET
Datasheet	SSG4890N Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SSG4890N	Dual-N Enhancement Mode Power MOSFET	SeCoS
SSG4800J-C	Dual-N Enhancement Mode Power MOSFET	SeCoS
SSG4801	Dual-P Enhancement Mode Power MOSFET	SeCoS
SSG4825P	P-Channel Mode Power MOSFET	SeCoS
SSG4825PE	P-Channel Mode Power MOSFET	SeCoS

Other Datasheets by VBsemi

Part Number	Description
SSG4228	30V Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

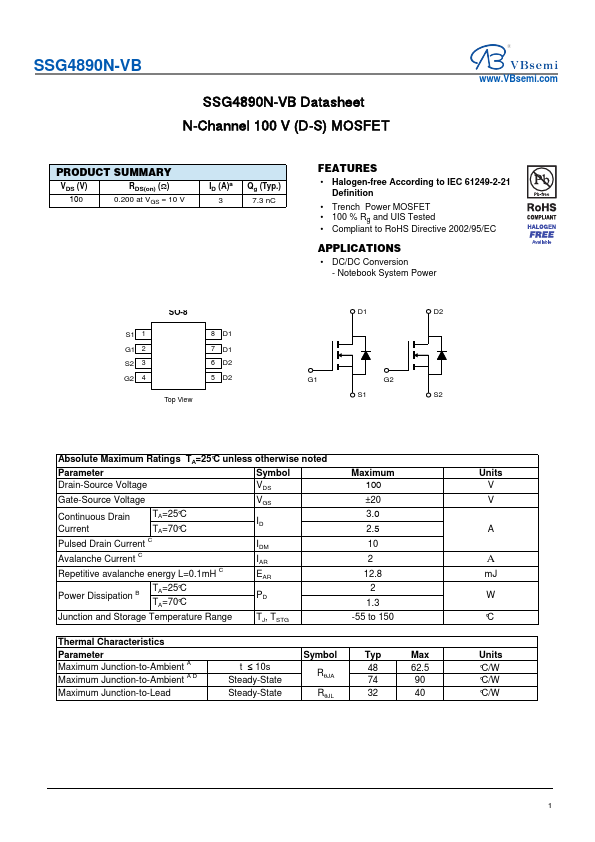

SSG4890N-VB SSG4890N-VB Datasheet N-Channel 100 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 100 RDS(on) () 0.200 at VGS = 10 V ID (A)a 3 Qg (Typ.) 7.3 nC FEATURES • Halogen-free According to IEC 61249-2-21 Definition • Trench Power MOSFET • 100 % Rg and UIS Tested • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • DC/DC Conversion - Notebook System Power S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 D1 D2 G1 G2 S1 S2 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TA=25°C TA=70°C ID Pulsed Drain Current C IDM Avalanche Current C IAR Repetitive avalanche energy L=0.
