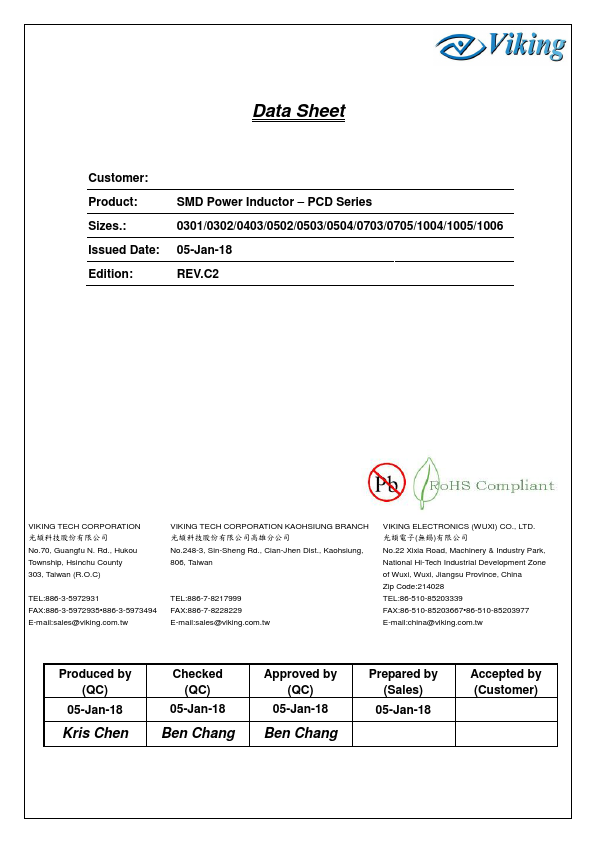

PCD0403 Datasheet | VIKING TECH

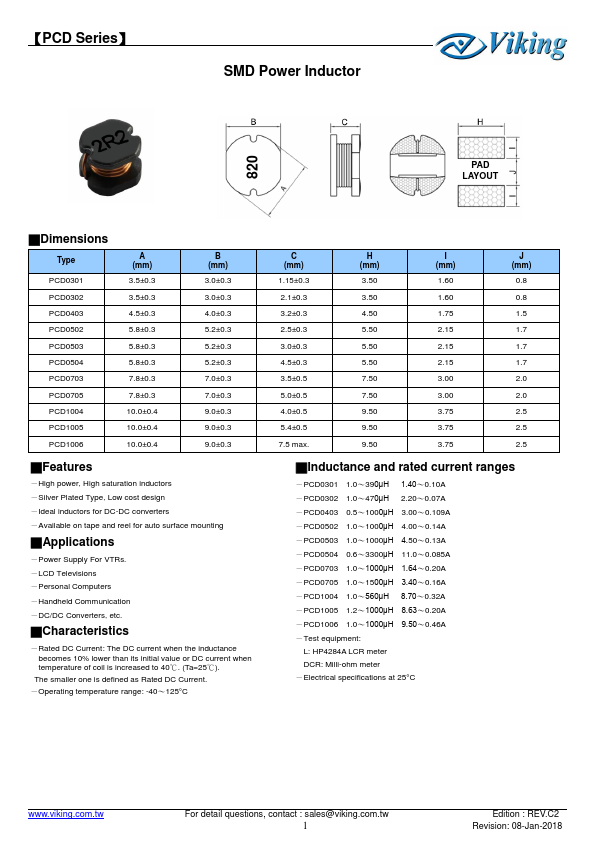

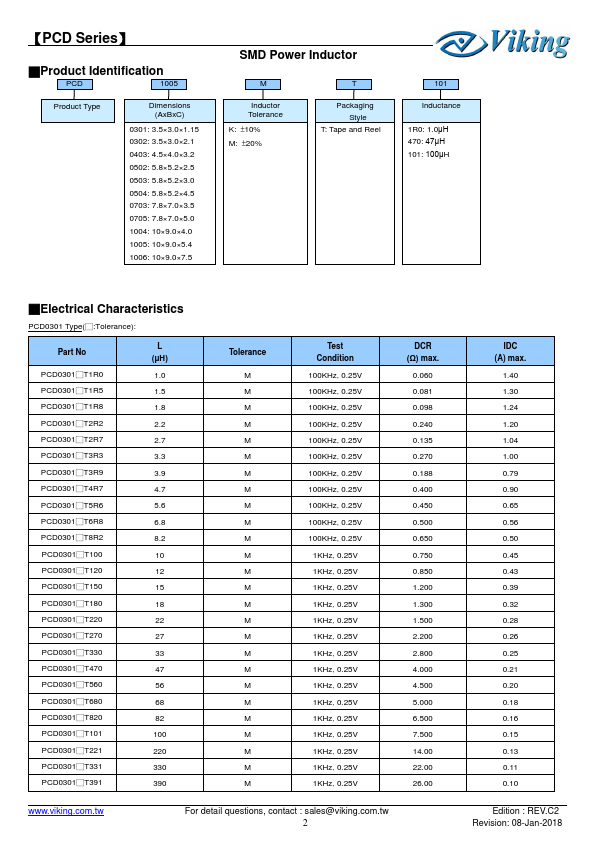

Features －High power, High saturation inductors －Silver Plated Type, Low cost design －Ideal inductors for DC-DC converters －Available on tape and reel for auto surface mounting - Applications －Power Supply For VTRs. －LCD Televisions －Personal puters －Handheld munication －DC/DC Converters, etc. - Characteristics －Rated DC Current: The DC current when the inductance bees 10% lower than its initial value or DC current when temperature of coil is increased to 40℃. (Ta=25℃). The smaller one is defined as Rated DC Current. －Operating temperature range: -40～125°C C (mm) 1.15±0.3 2.1±0.3 3.2±0.3 2.5±0.3 3.0±0.3 4.5±0.3 3.5±0.5 5.0±0.5 4.0±0.5 5.4±0.5 7.5 max. H (mm) 3.50 3.50 4.50 5.50 5.50 5.50 7.50 7.50 9.50 9.50 9.50 I (mm) 1.60 1.60 1.75 2.15 2.15 2.15 3.00 3.00 3.75 3.75 3.75 J (mm) 0.8 0.8 1.5 1.7 1.7 1.7 2.0 2.0 2.5 2.5 2.5 - Inductance and rated current ranges －PCD0301 1.0～390μH 1.40～0.10A －PCD0302 1.0～470μH 2.20～0.07A －PCD0403 0.5～1000μH 3.00～0.109A －PCD0502 1.0～1000μH 4.00～0.14A －PCD0503 1.0～1000μH 4.50～0.13A －PCD0504 0.6～3300μH 11.0～0.085A －PCD0703 1.0～1000μH 1.64～0.20A －PCD0705 1.0～1500μH 3.40～0.16A －PCD1004 1.0～560μH 8.70～0.32A －PCD1005 1.2～1000μH 8.63～0.20A －PCD1006 1.0～1000μH 9.50～0.46A －Test equipment: L: HP4284A LCR meter DCR: Milli-ohm meter －Electrical specifications at 25°C .viking..tw For detail questions, contact : sales@viking..tw 1 Edition : REV.C2 Revision: 08-Jan-2018 【PCD Series】 - Product Identification Product Type Dimensions (Ax Bx C) 0301: 3.5×3.0×1.15 0302: 3.5×3.0×2.1 0403: 4.5×4.0×3.2 0502: 5.8×5.2×2.5 0503: 5.8×5.2×3.0 0504: 5.8×5.2×4.5 0703: 7.8×7.0×3.5 0705:...
