VS1011E Datasheet | VLSI

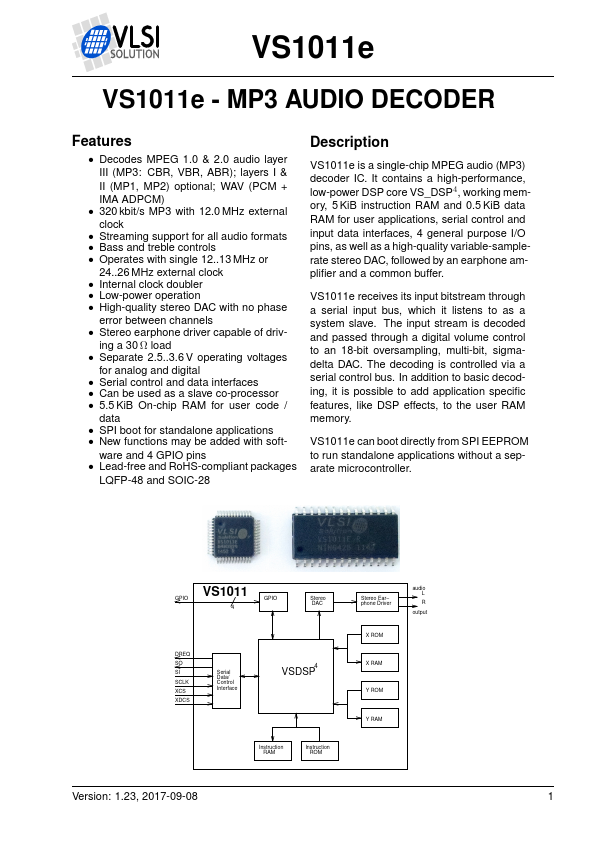

- MP3 AUDIO DECODER Features - Decodes MPEG 1.0 & 2.0 audio layer III (MP3: CBR, VBR, ABR); layers I & II (MP1, MP2) optional; WAV (PCM + IMA ADPCM) - 320 kbit/s MP3 with 12.0 MHz external clock - Streaming support for all audio formats - Bass and treble controls - Operates with single 12..13 MHz or 24..26 MHz external clock - Internal clock doubler - Low-power operation - High-quality stereo DAC with no phase error between channels - Stereo earphone driver capable of driv- ing a 30 Ω load - Separate 2.5..3.6 V operating voltages for analog and digital - Serial control and data interfaces - Can be used as a slave co-processor - 5.5 Ki B On-chip RAM for user code / data - SPI boot for standalone applications - New functions may be added with soft- ware and 4 GPIO pins - Lead-free and Ro HS-pliant packages LQFP-48 and SOIC-28 Description VS1011e is a single-chip MPEG audio (MP3) decoder IC. It contains a high-performance, low-power DSP core VS_DSP4, working memory, 5 Ki B instruction RAM and 0.5 Ki B data RAM for user applications, serial control and input data interfaces, 4 general purpose I/O pins, as well as a high-quality variable-samplerate stereo DAC, followed by an earphone amplifier and a mon buffer. VS1011e receives its input bitstream through a serial input bus, which it listens to as a system slave. The input stream is decoded and passed through a digital volume control to an 18-bit oversampling, multi-bit, sigmadelta DAC. The decoding is controlled via a serial control bus. In addition to basic decoding, it is possible to add application specific Features , like DSP effects, to the user RAM memory. VS1011e can boot directly from SPI EEPROM to run standalone applications without a separate microcontroller. VS1011 GPIO...
