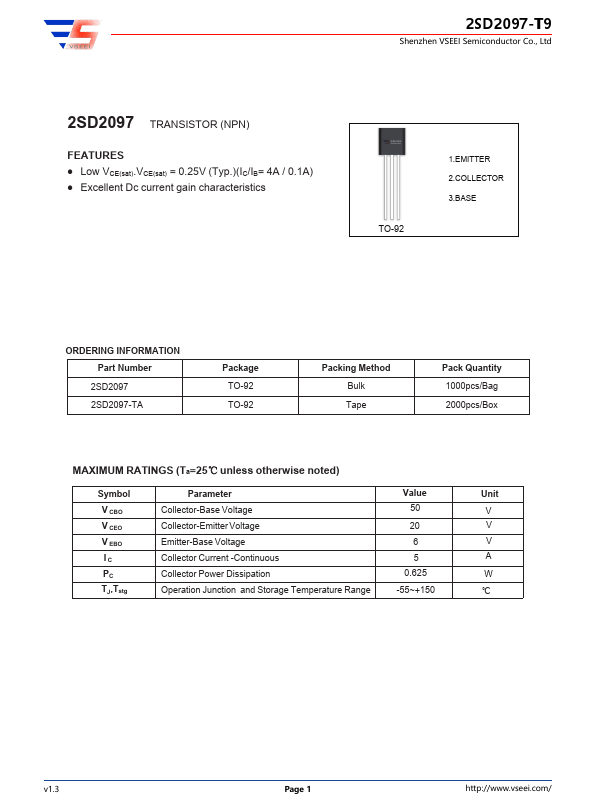

2SD2097-T9
FEATURES
- Low VCE(sat).VCE(sat) = 0.25V (Typ.)(IC/IB= 4A / 0.1A)
- Excellent Dc current gain characteristics
TO-92
1.EMITTER 2.COLLECTOR 3.BASE
ORDERING INFORMATION Part Number
2SD2097 2SD2097-TA
Package TO-92 TO-92
Packing Method Bulk Tape
Pack Quantity 1000pcs/Bag 2000pcs/Box
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol V CBO V CEO V EBO IC PC TJ,Tstg
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Operation Junction and Storage Temperature Range
Value 50
20 6 5 0.625 -55~+150
Unit V V V A
W ℃ v1.3
Page 1 http://.vseei./
Shenzhen VSEEI Semiconductor Co., Ltd

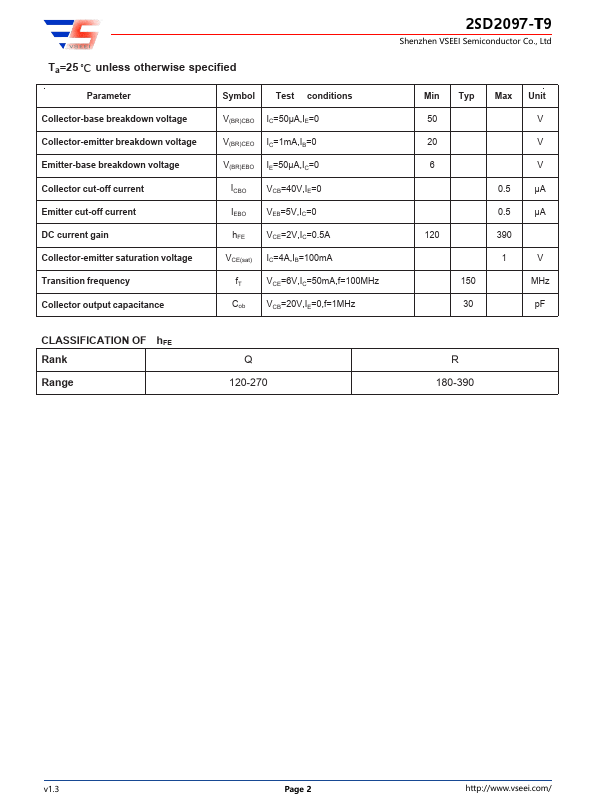

Ta=25 ℃ unless otherwise specified
Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current DC current gain Collector-emitter saturation voltage Transition frequency Collector output capacitance
Symbo...
