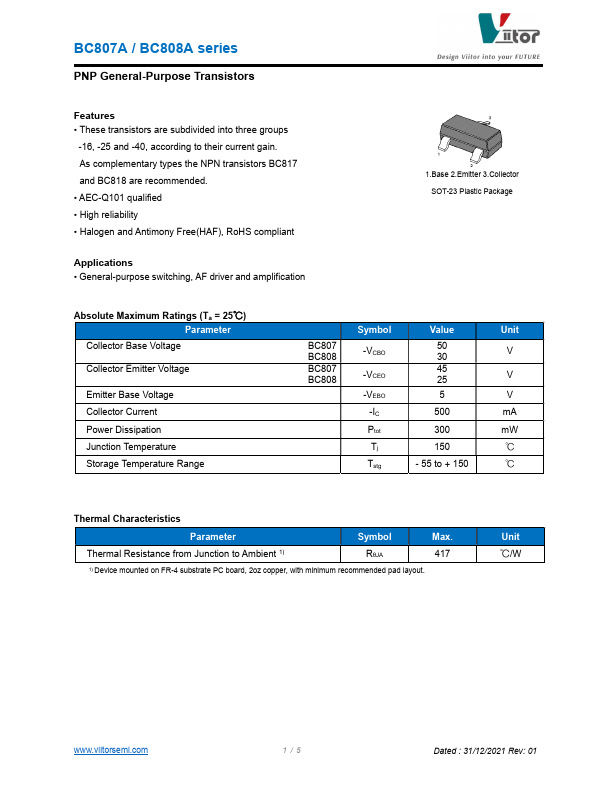

Viitor BC807A
PNP General-Purpose Transistors
| Part No. | BC807A |
|---|---|
| Datasheet | BC807A Download |
| Manufacturer | Viitor |
| Description | PNP General-Purpose Transistors |
| Buy | Stock & Price |
FEATURES
● These transistors are subdivided into three groups -16, -25 and -40, according to their current gain. As complementary types the NPN transistors BC817 and BC818 are recommended.● AEC-Q101 qualified
● High reliability
● Halogen and Antimony Free(HAF), RoHS compliant
APPLICATIONS
● General-purpose switching, AF driver and amplification 1.Base 2.Emitter 3.Collector SOT-23 Plastic PackageABSOLUTE MAXIMUM RATINGS
(Ta = 25℃) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Range BC807 BC808 BC807 BC808 Symbol -VCBO -VCEO -VEBO -IC Ptot Tj Tstg Value 50 30 45 25 5 500 300 150 - 55 to + 150 Unit V V V mA mW ℃ ℃ Thermal Characteristics Parameter Symbol Max. Thermal Resistance from Junction to Ambient 1) RθJA 417 1) Device mounted on FR-4 substrate PC board, 2oz copper, with minimum recommended pad layout. Unit ℃/W 1/5 Dated : 31/12/2021 Rev: 01 BC807A / BC808A series Electric...
