MBR30H100CT Datasheet Dual Common Cathode High Voltage Schottky Rectifier

Manufacturer: Vishay

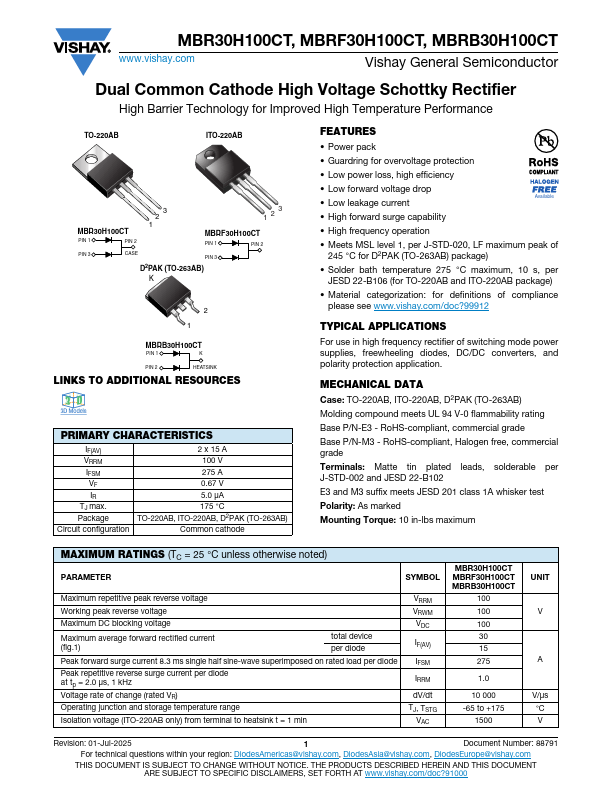

Overview: MBR30H100CT, MBRF30H100CT, MBRB30H100CT www.vishay.com Vishay General Semiconductor Dual Common Cathode High Voltage Schottky Rectifier High Barrier Technology for Improved High Temperature Performance TO-220AB ITO-220AB MBR30H100CT PIN 1 PIN 2 3 2 1 123 MBRF30H100CT PIN 1 PIN 2 PIN 3 CASE PIN 3 D2PAK (TO-263AB) K 2 1 MBRB30H100CT PIN 1 K PIN 2 HEATSINK DESIGN SUPPORT TOOLS click logo to get started Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max. Package 2 x 15 A 100 V 275 A 0.67 V 5.

Key Features

  • Power pack.
  • Guardring for overvoltage protection.
  • Low power loss, high efficiency.
  • Low forward voltage drop.
  • Low leakage current.
  • High forward surge capability.
  • High frequency operation.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
  • Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for TO-220AB and ITO-220AB package).
  • Material categorization: for definiti.
