SiHF9540S - Power MOSFET

Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface-mount power package capable of accommodating die sizes up to HEX-4.

Features

  • Surface-mount.
  • Available in tape and reel.
  • Dynamic dV/dt rating.
  • Repetitive avalanche rated Available.
  • P-channel.
  • 175 °C operating temperature Available.
  • Fast Switching.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Note.
  • This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lea.

📥 Download Datasheet

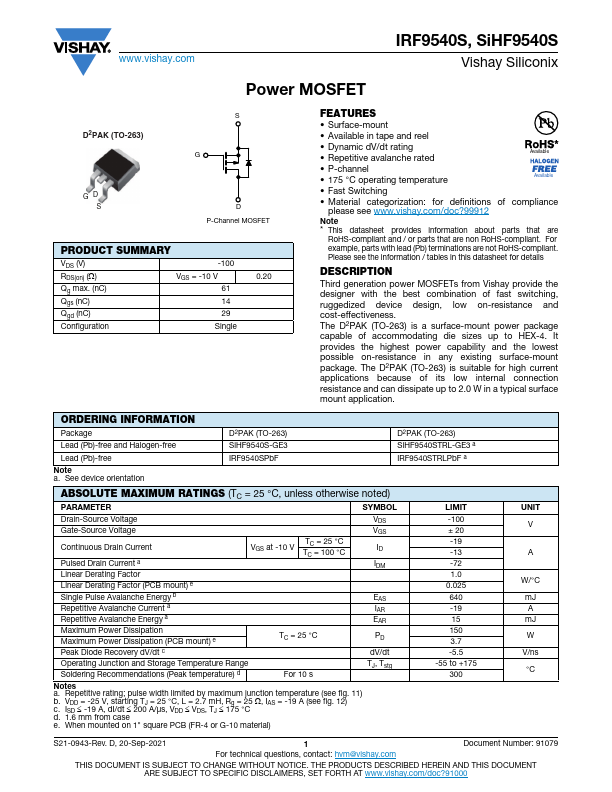

Datasheet preview – SiHF9540S

Datasheet Details

Part number SiHF9540S
Manufacturer Vishay
File Size 193.64 KB
Description Power MOSFET
Datasheet download datasheet SiHF9540S Datasheet

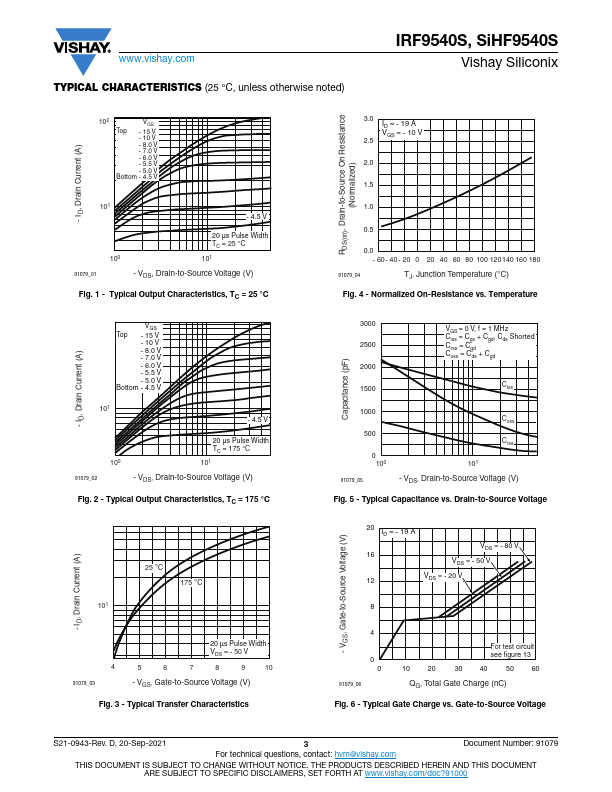

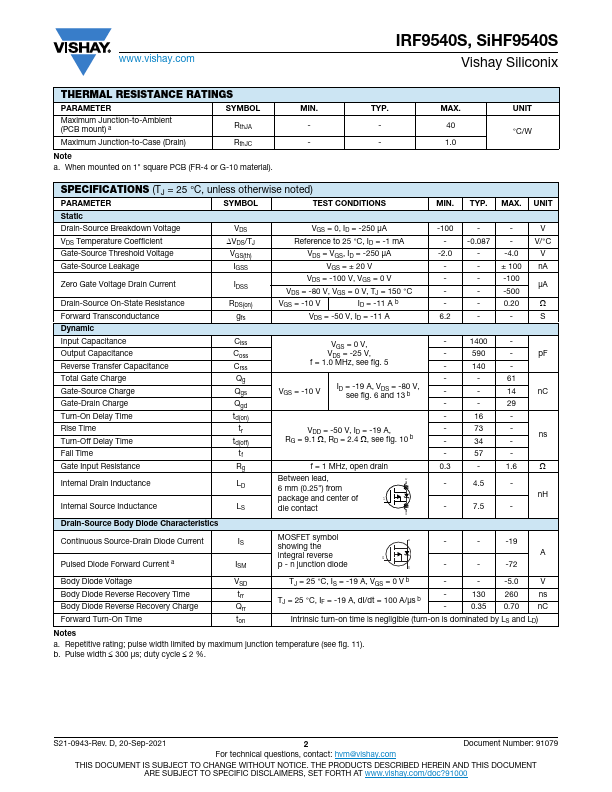

Additional preview pages of the SiHF9540S datasheet.

📁 Similar Datasheet

Other Datasheets by Vishay Siliconix

Full PDF Text Transcription

Click to expand full text
www.vishay.com IRF9540S, SiHF9540S Vishay Siliconix Power MOSFET D2PAK (TO-263) S G GD S D P-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg max. (nC) Qgs (nC) Qgd (nC) Configuration -100 VGS = -10 V 61 0.20 14 29 Single FEATURES • Surface-mount • Available in tape and reel • Dynamic dV/dt rating • Repetitive avalanche rated Available • P-channel • 175 °C operating temperature Available • Fast Switching • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant.
