1N5400, 1N5401, 1N5402, 1N5403, 1N5404, 1N5405, 1N5406, 1N5407, 1N5408
www.vishay.com
Vishay General Semiconductor
General Purpose Plastic Rectifier

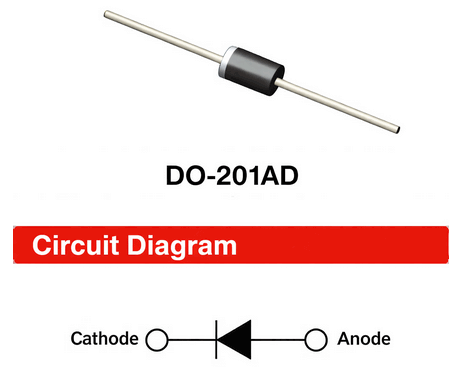

DO-201AD
FEATURES • Low forward voltage drop • Low leakage current • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: For definitions of
compliance please see www.vishay.com/doc?99912
PRIMARY CHARACTERISTICS
IF(AV) VRRM
3.0 A
50 V, 100 V, 200 V, 300 V, 500 V, 600 V, 800 V, 1000 V
IFSM IR VF
TJ max. Package
200 A 5.0 μA 1.2 V 150 °C DO-201AD
Diode variations
Single die
TYPICAL APPLICATIONS For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application.
Note • These devices are not AEC-Q101 qualified.
1N5408 Datasheet
