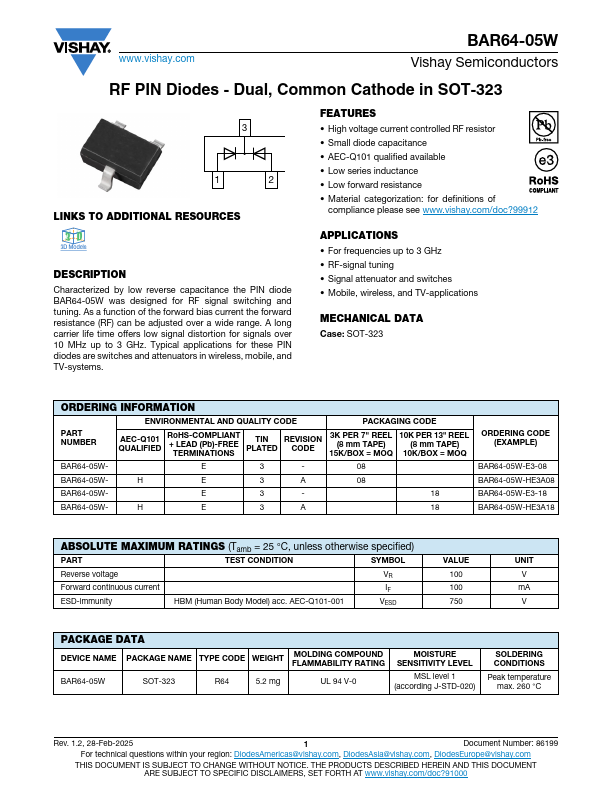

BAR64-05W
DESCRIPTION
Characterized by low reverse capacitance the PIN diode BAR64-05W was designed for RF signal switching and tuning. As a function of the forward bias current the forward resistance (RF) can be adjusted over a wide range. A long carrier life time offers low signal distortion for signals over 10 MHz up to 3 GHz. Typical applications for these PIN diodes are switches and attenuators in wireless, mobile, and TV-systems.
FEATURES
- High voltage current controlled RF resistor
- Small diode capacitance
- AEC-Q101 qualified available
- Low series inductance
- Low forward resistance
- Material categorization: for definitions of pliance please see .vishay./doc?99912
APPLICATIONS
- For frequencies up to 3 GHz
- RF-signal tuning
- Signal attenuator and switches
- Mobile, wireless, and TV-applications
MECHANICAL DATA Case: SOT-323
ORDERING INFORMATION
PART NUMBER
ENVIRONMENTAL AND QUALITY CODE
PACKAGING CODE
AEC-Q101 QUALIFIED
Ro HS-PLIANT + LEAD (Pb)-FREE
TERMINATIONS
TIN...
