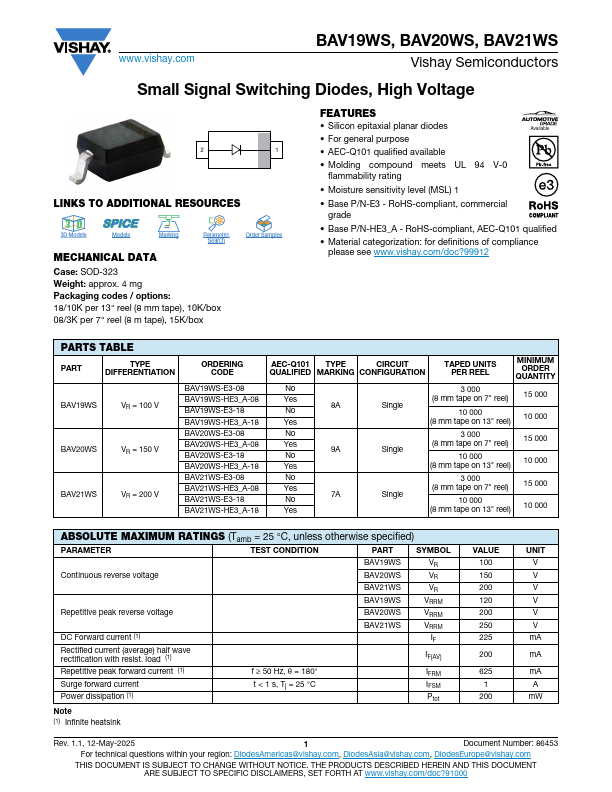

Vishay BAV19WS
Small Signal Switching Diodes
| Part No. | BAV19WS |
|---|---|
| Datasheet | BAV19WS Download |
| Manufacturer |  Vishay |
| Description | Small Signal Switching Diodes |
| Buy | Stock & Price |
MECHANICAL DATA
Case: SOD-323 Weight: approx. 4 mg Packaging codes / options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 m tape), 15K/boxFEATURES
● Silicon epitaxial planar diodes● For general purpose Available
● AEC-Q101 qualified available
● Molding compound meets UL 94 V-0 flammability rating
● Moisture sensitivity level (MSL) 1
● Base P/N-E3 - RoHS-compliant, commercial grade
● Base P/N-HE3_A - RoHS-compliant, AEC-Q101 qualified
● Material categorization: for definitions of compliance please see PARTS TABLE PART TYPE DIFFERENTIATION BAV19WS VR = 100 V BAV20WS VR = 150 V BAV21WS VR = 200 V ORDERING CODE BAV19WS-E3-08 BAV19WS-HE3_A-08 BAV19WS-E3-18 BAV19WS-HE3_A-18 BAV20WS-E3-08 BAV20WS-HE3_A-08 BAV20WS-E3-18 BAV20WS-HE3_A-18 BAV21WS-E3-08 BAV21WS-HE3_A-08 BAV21WS-E3-18 BAV21WS-HE3_A-18 AEC-Q101 TYPE CIRCUIT QUALIFIED MARKING CONFIGURATION TAPED UNITS PER REEL MINIMUM ORDER QUANTITY No Yes 8A No Yes Single 3 000 (8 mm tape on 7" reel) 10 000 (8 mm tape on 13" ree...
