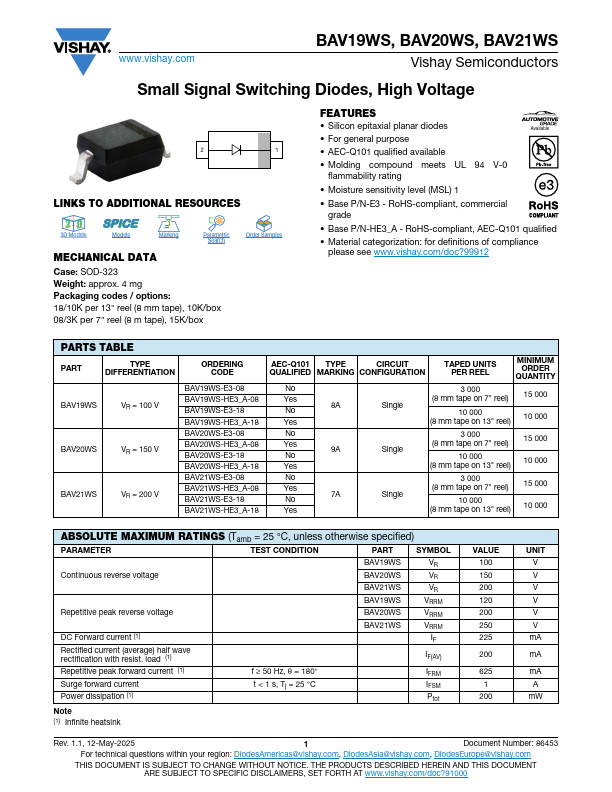

BAV21WS
FEATURES
- Silicon epitaxial planar diodes
- For general purpose
Available
- AEC-Q101 qualified available
- Molding pound meets UL 94 V-0 flammability rating
- Moisture sensitivity level (MSL) 1
- Base P/N-E3
- Ro HS-pliant, mercial grade
- Base P/N-HE3_A
- Ro HS-pliant, AEC-Q101 qualified
- Material categorization: for definitions of pliance please see .vishay./doc?99912
PARTS TABLE
PART
TYPE DIFFERENTIATION
BAV19WS
VR = 100 V
BAV20WS
VR = 150 V
VR = 200 V
ORDERING CODE
BAV19WS-E3-08 BAV19WS-HE3_A-08 BAV19WS-E3-18 BAV19WS-HE3_A-18 BAV20WS-E3-08 BAV20WS-HE3_A-08 BAV20WS-E3-18 BAV20WS-HE3_A-18 BAV21WS-E3-08 BAV21WS-HE3_A-08 BAV21WS-E3-18 BAV21WS-HE3_A-18
AEC-Q101 TYPE
CIRCUIT
QUALIFIED MARKING CONFIGURATION
TAPED UNITS PER REEL
MINIMUM ORDER
QUANTITY
No Yes
8A No Yes
Single
3 000 (8 mm tape on 7" reel)
10 000 (8 mm tape on 13" reel)
15 000 10 000
No Yes
9A No Yes
Single
3 000 (8 mm tape on 7" reel)
10 000 (8 mm tape on 13" reel)
15 000 10...
