BZG05C75 Datasheet Zener Diodes

Manufacturer: Vishay

Overview: www.vishay.com PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VBR VWM PPPM TJ max. VZ specification Int. construction 3.3 to 100 2.7 to 80 5.2 to 95 4.

Download the BZG05C75 datasheet PDF. This datasheet also includes the BZG05C3V3 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

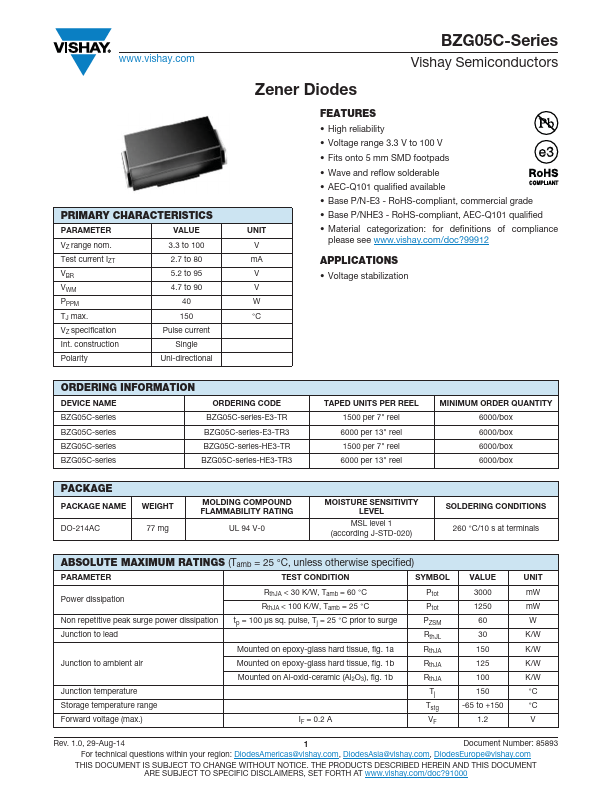

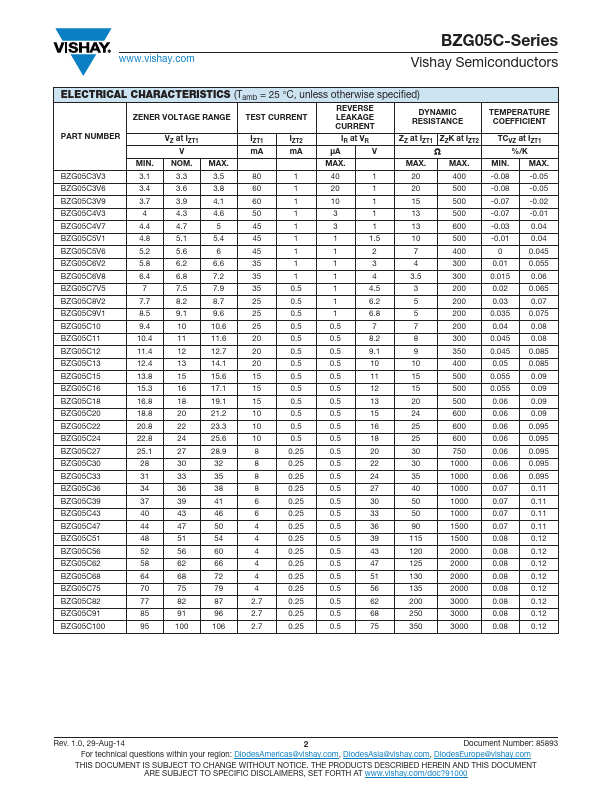

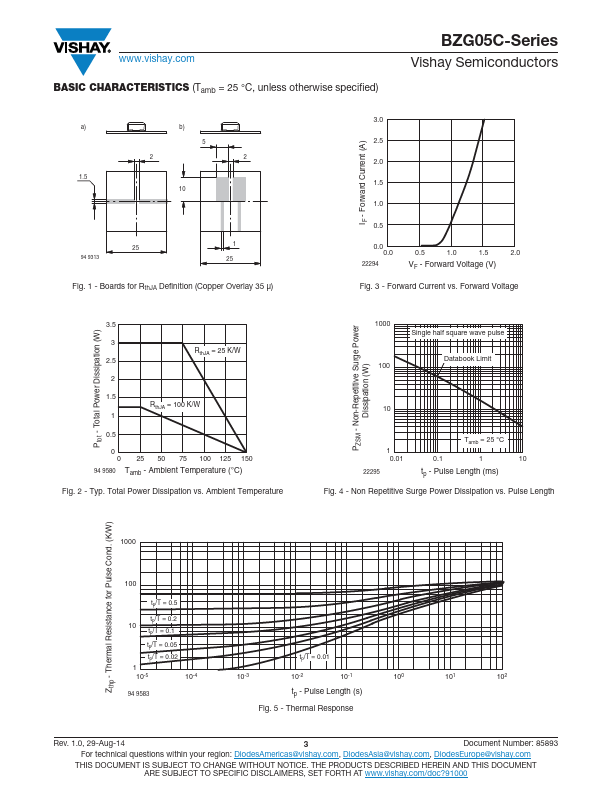

BZG05C75 zener diodes by Vishay - Datasheet Preview

Datasheet Details

Part number	BZG05C75
Manufacturer	Vishay
File Size	95.24 KB
Description	Zener Diodes
Download	BZG05C75 Download (PDF)

Key Features

High reliability.
Voltage range 3.3 V to 100 V.
Fits onto 5 mm SMD footpads.
Wave and reflow solderable.
AEC-Q101 qualified available.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
