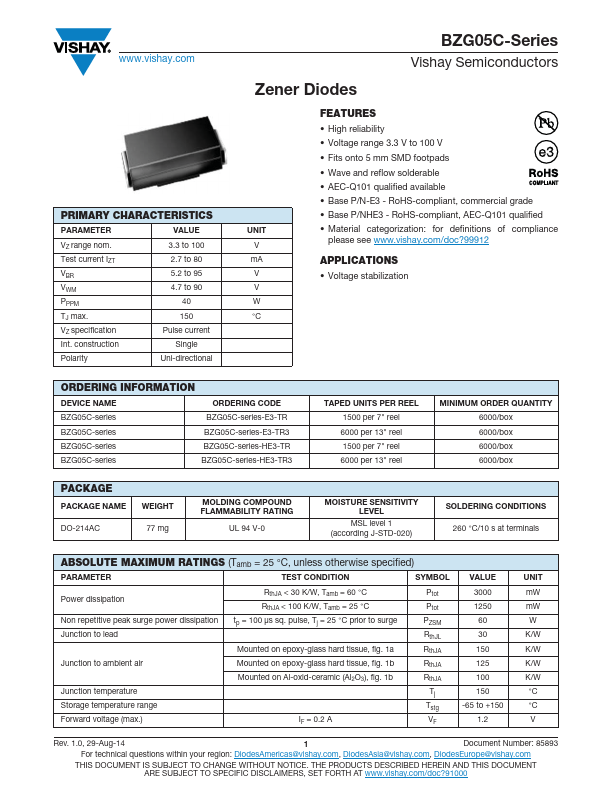

BZG05C82 Overview
PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VBR VWM PPPM TJ max.
BZG05C82 Key Features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3
- RoHS-pliant, mercial grade
- Base P/NHE3
- RoHS-pliant, AEC-Q101 qualified
- Material categorization: for definitions of pliance
