BZX85 - Zener Diode

Vishay

Download the BZX85 datasheet PDF. This datasheet also covers the BZX85B100 variant, as both devices belong to the same zener diode family and are provided as variant models within a single manufacturer datasheet.

Key Features

Silicon planar power Zener diodes.
For use in stabilizing and clipping circuits with high power rating.
The Zener voltages are graded according to the international E 24 standard. Replace suffix “C” with “B” for ± 2 % tolerance.
AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

BZX85 zener diode by Vishay - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BZX85B100-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BZX85
Manufacturer	Vishay
File Size	106.58 KB
Description	Zener Diode
Datasheet	BZX85 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BZX85-C10	ZENER DIODES	General Semiconductor
BZX85-C11	ZENER DIODES	General Semiconductor
BZX85-C110	SILICON PLANAR POWER ZENER DIODES	GOOD-ARK Electronics
BZX85-C12	ZENER DIODES	General Semiconductor
BZX85-C13	ZENER DIODES	General Semiconductor

Other Datasheets by Vishay

Part Number	Description
BZX85B10	Zener Diodes
BZX85B100	Zener Diodes
BZX85B11	Zener Diodes
BZX85B12	Zener Diodes
BZX85B13	Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

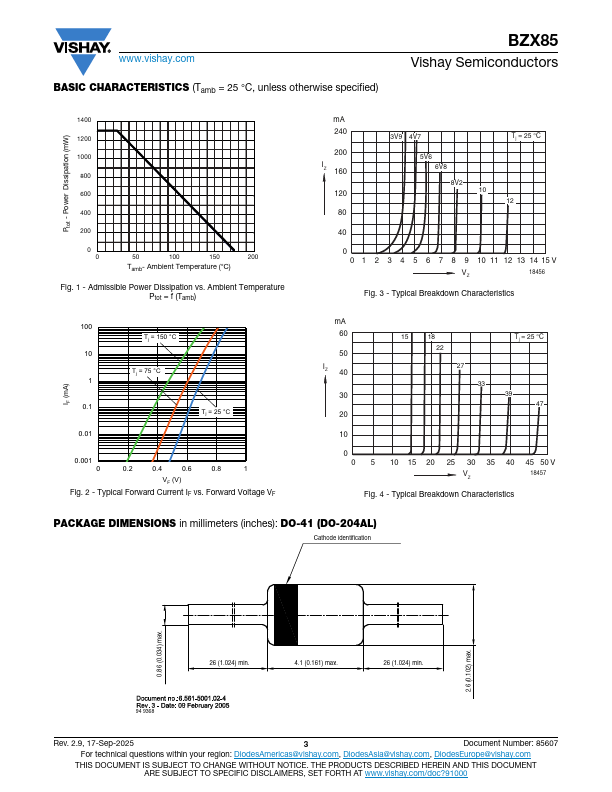

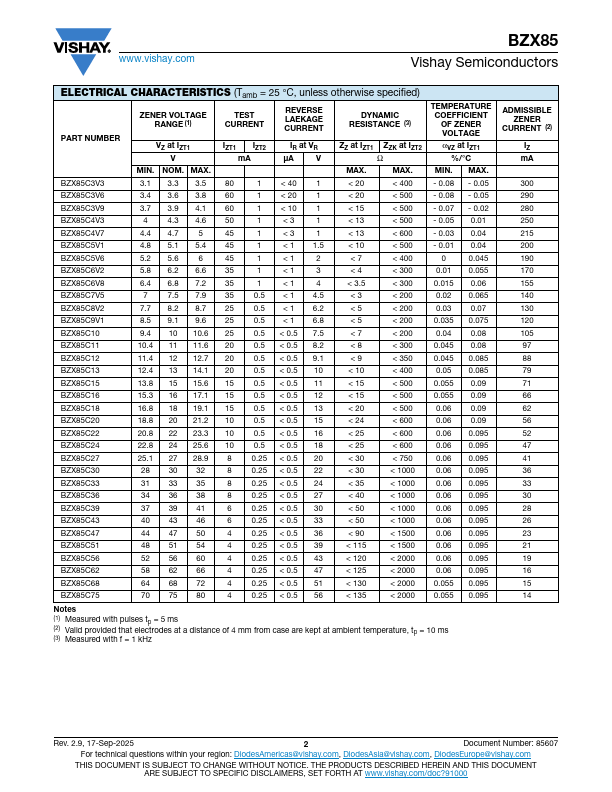

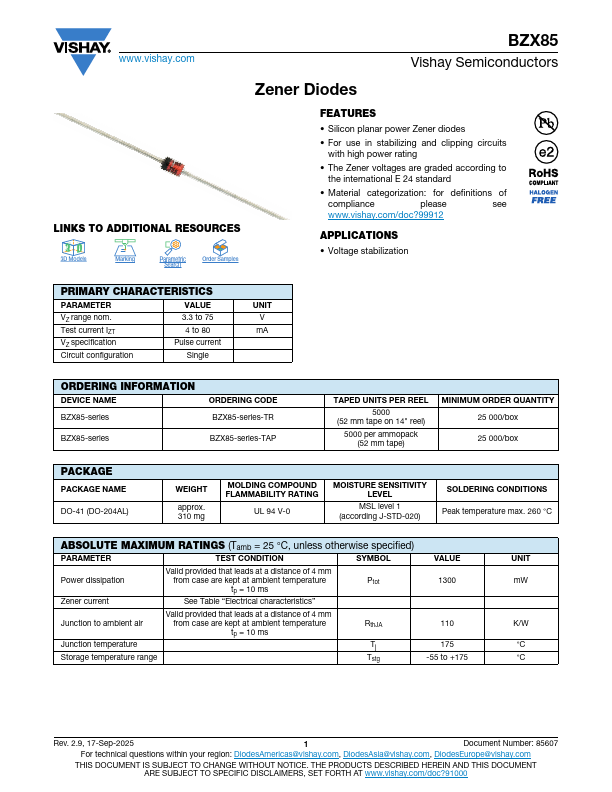

www.vishay.com BZX85-Series Vishay Semiconductors Zener Diodes DESIGN SUPPORT TOOLS AVAILABLE 3D 3D 3D Models FEATURES • Silicon planar power Zener diodes • For use in stabilizing and clipping circuits with high power rating • The Zener voltages are graded according to the international E 24 standard. Replace suffix “C” with “B” for ± 2 % tolerance • AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • Voltage stabilization PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.7 to 100 2.
