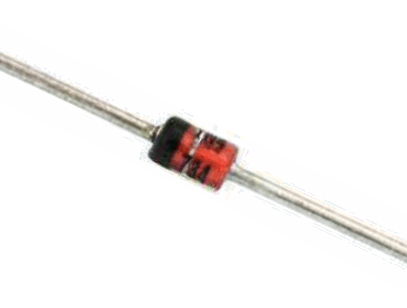

Vishay C12PH
Zener Diode
| Part No. | C12PH |
|---|---|
| Datasheet | C12PH Download |
| Manufacturer |  Vishay |
| Description | Zener Diode |
| Buy | Stock & Price |
FEATURES
● Silicon planar power Zener diodes● For use in stabilizing and clipping circuits with high power rating
● The Zener voltages are graded according to the international E 24 standard. Replace suffix “C” with “B” for ± 2 % tolerance
● AEC-Q101 qualified
● Material categorization: for definitions of compliance please see
APPLICATIONS
● Voltage stabilization PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.7 to 100 2.7 to 80 Pulse current Single UNIT V mA ORDERING INFORMATION DEVICE NAME BZX85-series ORDERING CODE BZX85-series-TR BZX85-series BZX85-series-TAP TAPED UNITS PER REEL MINIMUM ORDER QUANTITY 5000 (52 mm tape on 13" reel) 25 000/box 5000 per ammopack (52 mm tape) 25 000/box PACKAGE PACKAGE NAME DO-41 (DO-204AL) WEIGHT 310 mg MOLDING COMPOUND FLAMMABILITY RATING UL 94 V-0 MOISTURE SENSITIVITY LEVEL MSL level 1 (according J-STD-020) SOLDERING CONDITIONS Peak temperature max. 260 °CABSOLUTE MAXIMUM RATINGS
(Ta...
