CNY70 Datasheet | Vishay

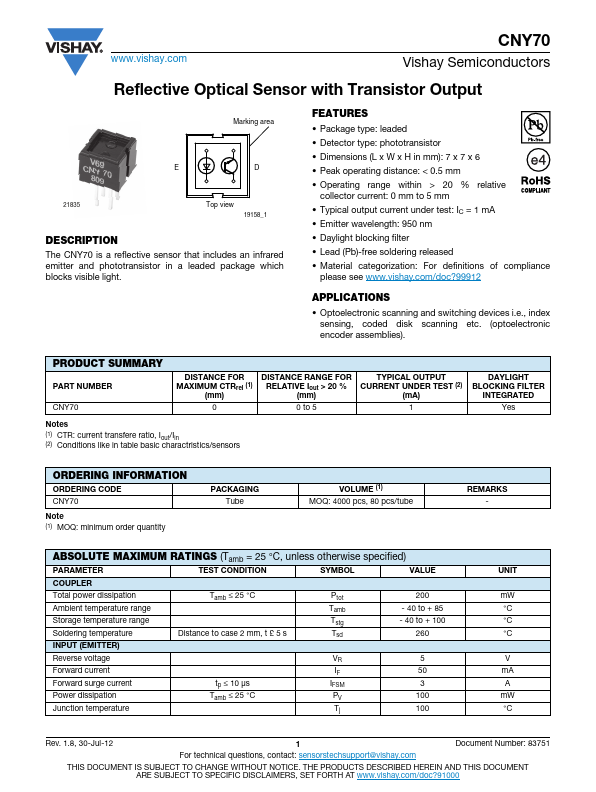

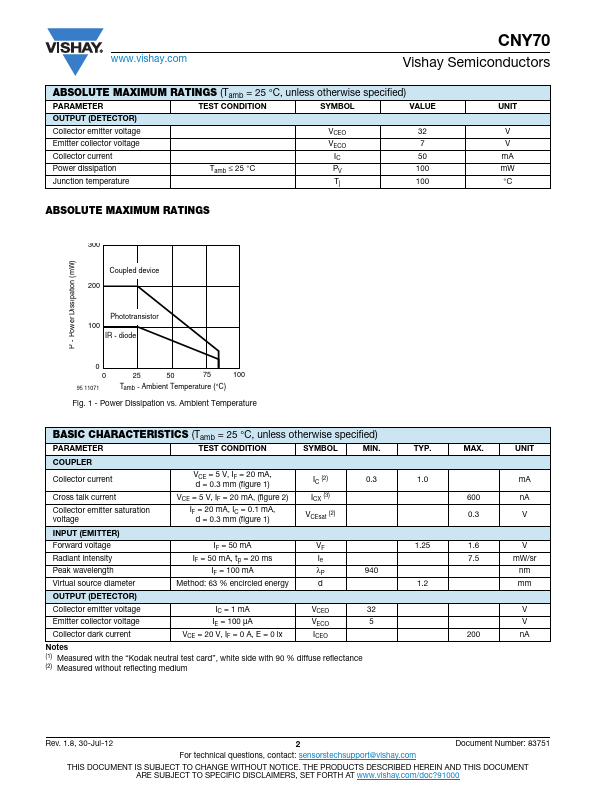

DESCRIPTION The CNY70 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package which blocks visible light. FEATURES - Package type: leaded - Detector type: phototransistor - Dimensions (L x W x H in mm): 7 x 7 x 6 - Peak operating distance: < 0.5 mm - Operating range within > 20 % relative collector current: 0 mm to 5 mm - Typical output current under test: IC = 1 m A - Emitter wavelength: 950 nm - Daylight blocking filter - Lead (Pb)-free soldering released - Material categorization: For definitions of pliance please see .vishay./doc?99912 APPLICATIONS - Optoelectronic scanning and switching devices i.e., index sensing, coded disk scanning etc. (optoelectronic encoder assemblies). PRODUCT SUMMARY PART NUMBER CNY70 DISTANCE FOR MAXIMUM CTRrel (1) (mm) DISTANCE RANGE FOR RELATIVE Iout > 20 % (mm) 0 to 5 TYPICAL OUTPUT CURRENT UNDER TEST (2) (m A) DAYLIGHT BLOCKING FILTER INTEGRATED Yes Notes (1) CTR: current transfere ratio, Iout/Iin (2) Conditions like in table basic charactristics/sensors ORDERING INFORMATION ORDERING CODE CNY70 Note (1) MOQ: minimum order quantity PACKAGING Tube VOLUME (1) MOQ: 4000 pcs, 80 pcs/tube REMARKS - ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL...
