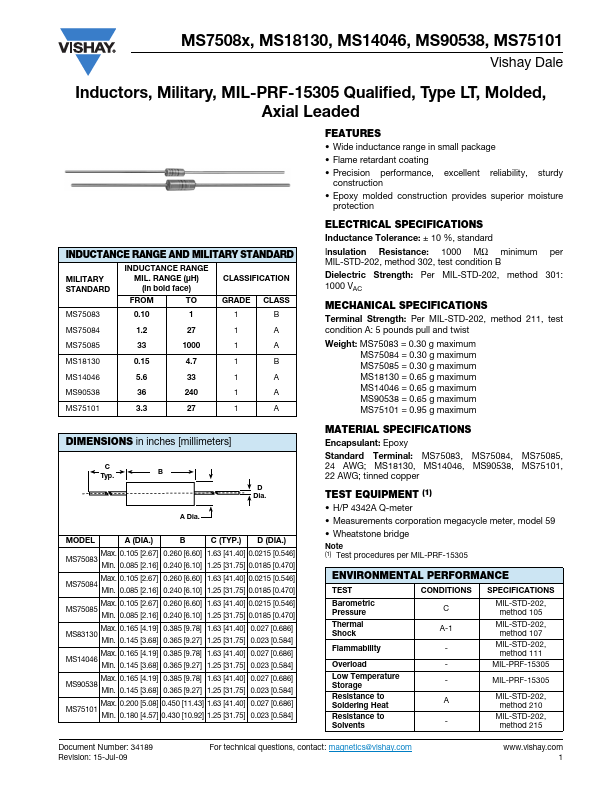

MS18130
MS18130 is Inductors manufactured by Vishay.
FEATURES
- Wide inductance range in small package
- Flame retardant coating
- Precision performance, excellent reliability, sturdy construction
- Epoxy molded construction provides superior moisture protection
INDUCTANCE RANGE AND MILITARY STANDARD
MILITARY STANDARD
INDUCTANCE RANGE MIL. RANGE (μH) (in bold face)
CLASSIFICATION
FROM
GRADE CLASS
MS75083
MS75084
MS75085
MS14046
MS90538
MS75101

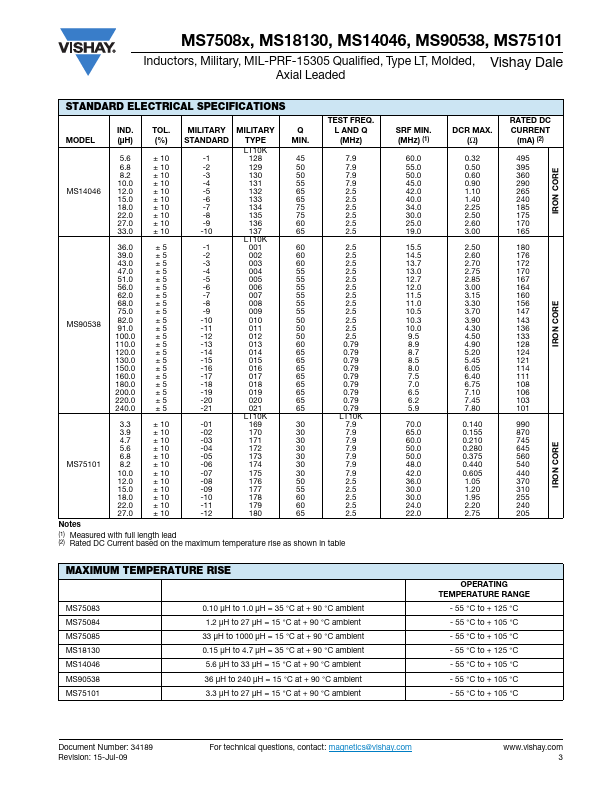

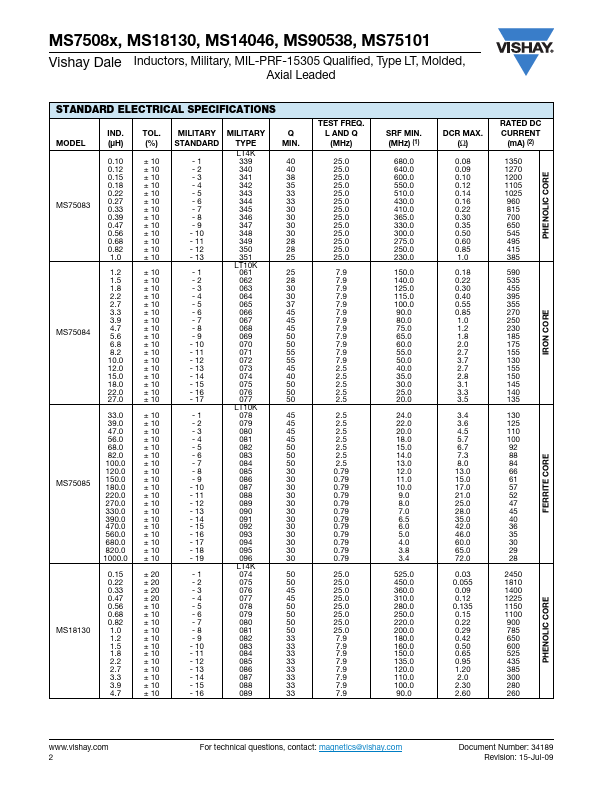

ELECTRICAL SPECIFICATIONS Inductance Tolerance: ± 10 %, standard
Insulation Resistance: 1000 MΩ minimum per MIL-STD-202, method 302, test condition B Dielectric Strength: Per MIL-STD-202, method 301: 1000 VAC
MECHANICAL SPECIFICATIONS Terminal Strength: Per MIL-STD-202, method 211, test condition A: 5 pounds pull and twist
Weight: MS75083 = 0.30 g maximum MS75084 = 0.30 g maximum MS75085 = 0.30 g maximum MS18130 = 0.65 g maximum MS14046 = 0.65 g maximum MS90538 = 0.65 g maximum MS75101 = 0.95 g maximum
DIMENSIONS in inches [millimeters]
C Typ.
D Dia.
A Dia.
MODEL
A (DIA.)
C (TYP.) D (DIA.)
Max. 0.105 [2.67] 0.260 [6.60] 1.63 [41.40] 0.0215 [0.546] MS75083
Min. 0.085 [2.16] 0.240 [6.10] 1.25 [31.75] 0.0185 [0.470]
Max. 0.105 [2.67] 0.260 [6.60] 1.63 [41.40] 0.0215 [0.546] MS75084
Min. 0.085 [2.16] 0.240 [6.10] 1.25 [31.75] 0.0185...
