MS90538 - Inductors

Features

  • Wide inductance range in small package.
  • Flame retardant coating.
  • Precision performance, excellent reliability, sturdy construction.
  • Epoxy molded construction provides superior moisture protection.

📥 Download Datasheet

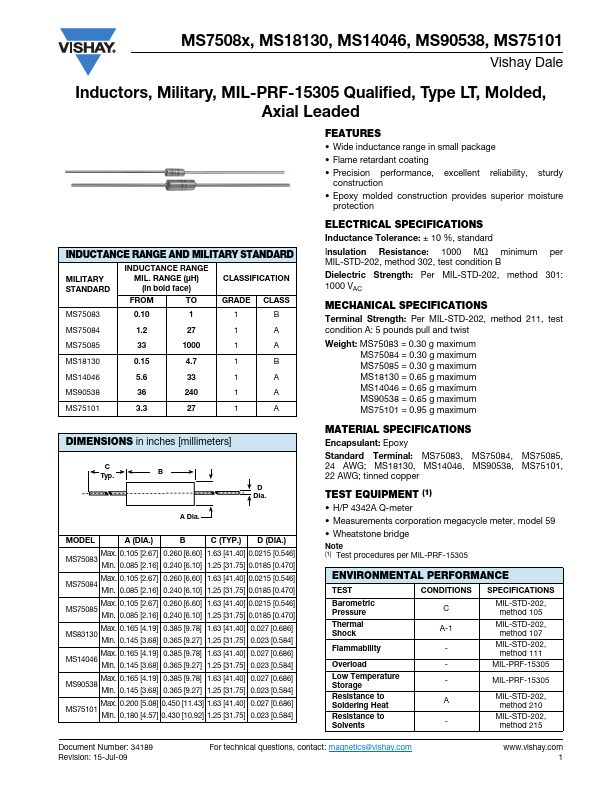

Datasheet preview – MS90538

Datasheet Details

Part number MS90538
Manufacturer Vishay
File Size 59.93 KB
Description Inductors
Datasheet download datasheet MS90538 Datasheet

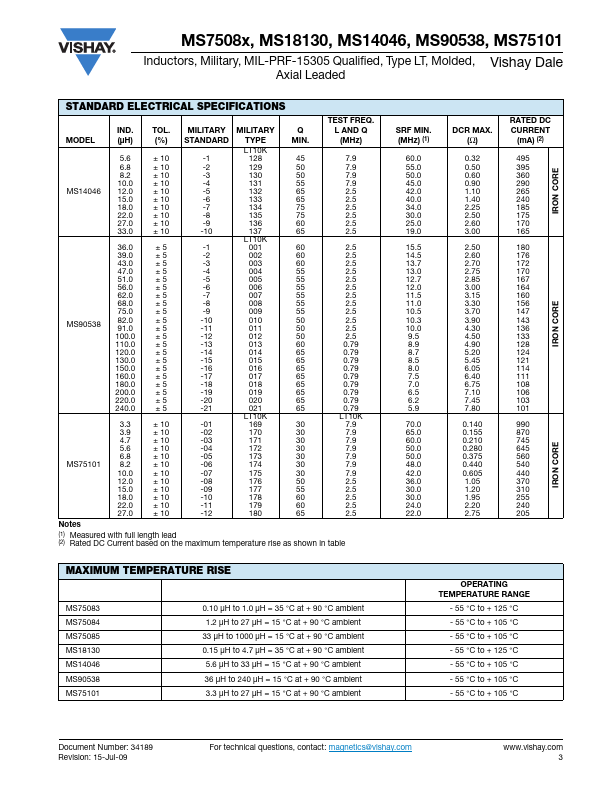

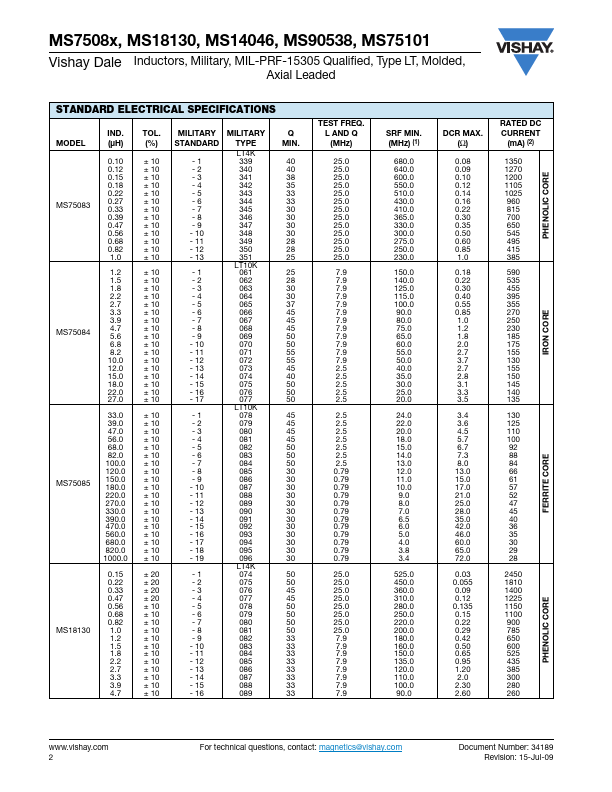

Additional preview pages of the MS90538 datasheet.

📁 Similar Datasheet

  • MS9000 - Single axis analog accelerometer (SAFRAN)
  • MS9006 - 2-Wire Transmitter (Microsyst)
  • MS9035C - Head (Military Specification)
  • MS90451 - Lamp (Military Standard)
  • MS906C2 - Low Loss Super High Speed Rectifier (Fuji Electric)
  • MS906C3 - Low Loss Fast Recovery Diode (Fuji Electric)
  • MS90726-xx - HEXAGON HEAD (Military Specification)
  • MS90727 - HEXAGON HEAD (ETC)
  • MS90C032 - LVDS Quad CMOS Receiver (Ruimeng)
  • MS90C032T - LVDS Quad CMOS Receiver (Ruimeng)
Other Datasheets by Vishay

    Full PDF Text Transcription

    Click to expand full text
    MS7508x, MS18130, MS14046, MS90538, MS75101 Vishay Dale Inductors, Military, MIL-PRF-15305 Qualified, Type LT, Molded, Axial Leaded FEATURES • Wide inductance range in small package • Flame retardant coating • Precision performance, excellent reliability, sturdy construction • Epoxy molded construction provides superior moisture protection INDUCTANCE RANGE AND MILITARY STANDARD MILITARY STANDARD INDUCTANCE RANGE MIL. RANGE (μH) (in bold face) CLASSIFICATION FROM TO GRADE CLASS MS75083 0.10 1 1 B MS75084 1.2 27 1 A MS75085 33 1000 1 A MS18130 0.15 4.7 1 B MS14046 5.6 33 1 A MS90538 36 240 1 A MS75101 3.
