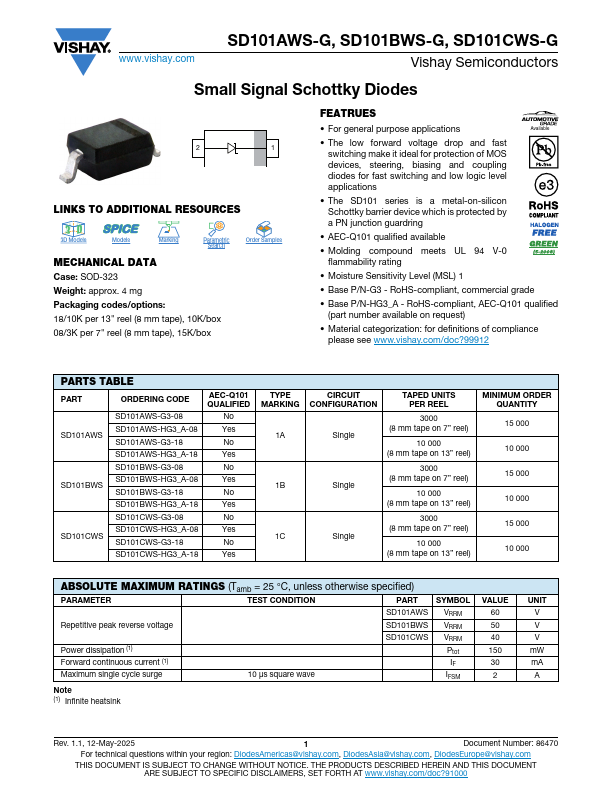

.vishay. SD101AWS-G, SD101BWS-G, SD101CWS-G Vishay Semiconductors Small Signal Schottky Diodes 2 1 LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Models Marking Parametric Search Order Samples MECHANICAL DATA Case: SOD-323 Weight: approx. 4 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box FEATRUES - For general purpose applications Available - The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications - The SD101 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring - AEC-Q101 qualified available - Molding pound meets UL 94 V-0 flammability rating - Moisture Sensitivity Level (MSL) 1 - Base P/N-G3 - RoHS-pliant, mercial grade - Base P/N-HG3_A - RoHS-pliant, AEC-Q101 qualified (part number available on request) - Material categorization: for definitions of pliance please see .vishay./doc?99912 PARTS TABLE PART ORDERING CODE...
