Vishay SD103BW

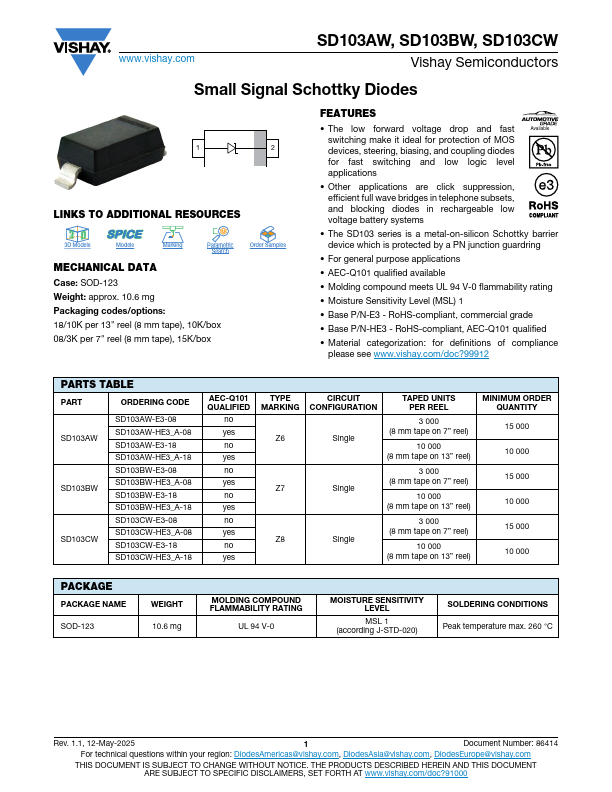

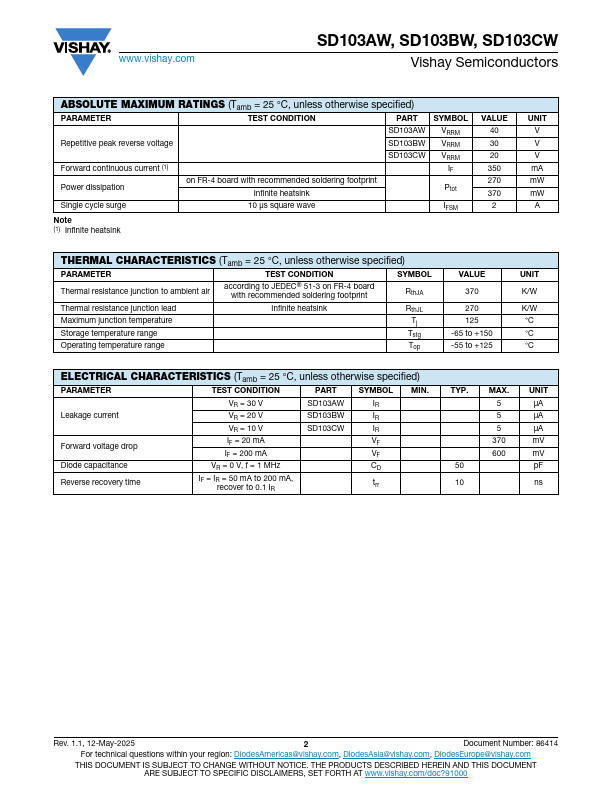

The SD103 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring • For general purpose applications • AEC-Q101 qualified available • Molding compound meets UL 94 V-0 flammability rating • Moisture Sensitivity Level (MSL) 1 • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see PARTS TABLE PART ORDERING CODE SD103AW SD103BW SD103CW SD103AW-E3-08 SD103AW-HE3_A-08 SD103AW-E3-18 SD103AW-HE3_A-18 SD103BW-E3-08 SD103BW-HE3_A-08 SD103BW-E3-18... THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT SD103AW, SD103BW, SD103CW Vishay Semiconductors ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION PART SYMBOL Repetitive peak reverse voltage Forward continuous current (1) Power dissipation SD103AW SD103BW SD103CW on FR-4 board with recommended soldering footprint Infinite heatsink VRRM VRRM VRRM IF Ptot Single cycle surge 10 μs square wave IFSM Note (1) Infinite heatsink VALUE 40 30 20 350 270 370 2 UNIT V V V mA mW mW A THERMAL CHARACTERISTICS (Tamb =...| Part No. | SD103BW |
|---|---|
| Datasheet | SD103BW Download |
| Manufacturer |  Vishay |
| Description | Small Signal Schottky Diodes |
